Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

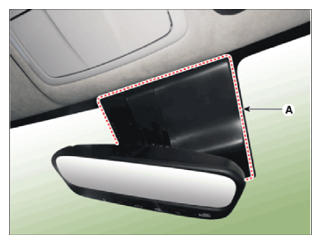

  2. Remove the inside multi cover (A).
    G15590499Courtesy of HYUNDAI MOTOR AMERICA

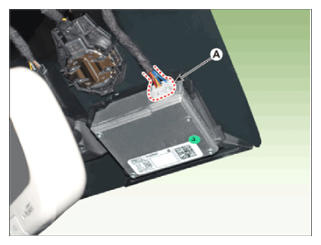

  3. Disconnect the front view camera connector (A).
    G15590500Courtesy of HYUNDAI MOTOR AMERICA

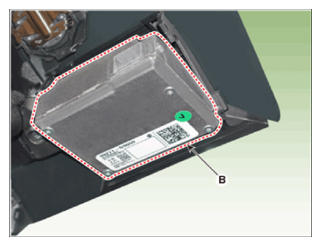

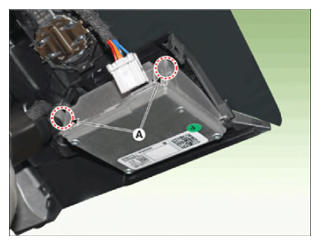

  4. Separate the fixed points (A) of coupler and remove the front view camera (B).
    NOTE:
    • Be careful not to break the hook (A).
    G15590501Courtesy of HYUNDAI MOTOR AMERICA
    G15590502Courtesy of HYUNDAI MOTOR AMERICA
