Calibration Procedure

  1. Connect the self-diagnosis device. (CAN line or OBD connector)
  2. Turn ignition switch on.
  3. Press calibration button of the Steering Wheel Angle Sensor.
  4. HEC U calibration procedure is performed. (Calibration records, DTC codes erasure)

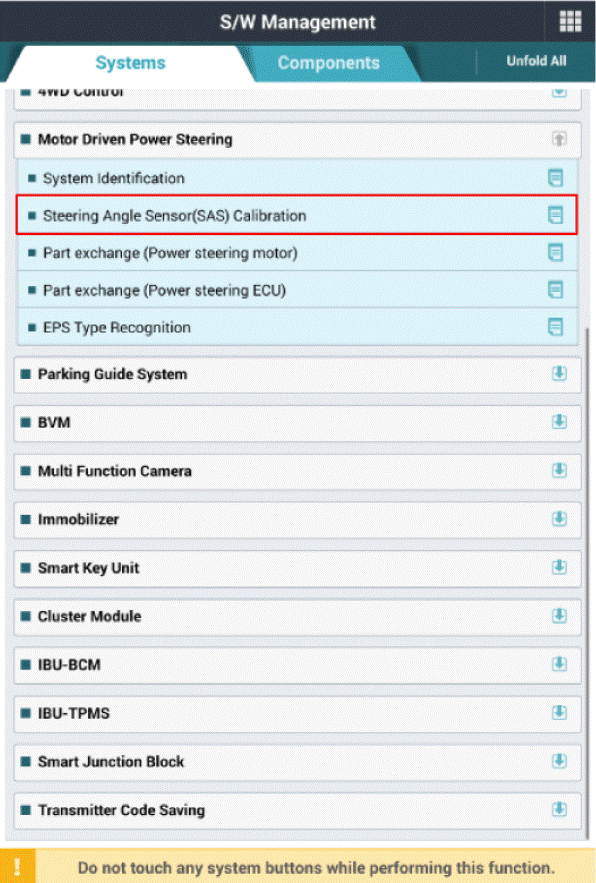

    G15589093Courtesy of HYUNDAI MOTOR AMERICA

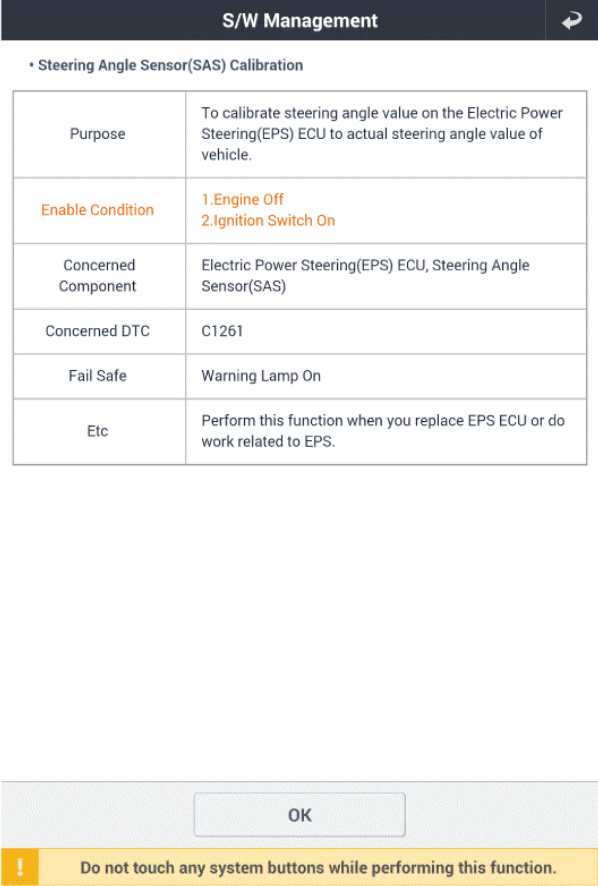

    G15589094Courtesy of HYUNDAI MOTOR AMERICA
