IAU-BLE Module Learning Status Inspection

Digital key function works only when the learning states of IAU and BLE are learnt.

You can confirm the learning status as below.

1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

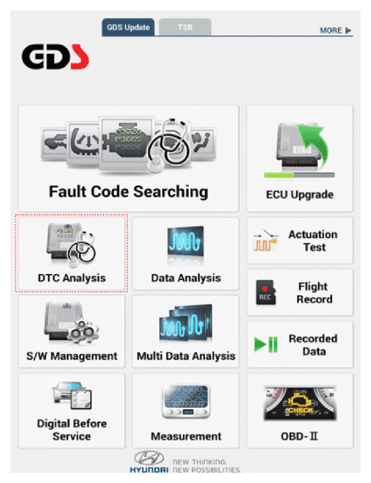

2. If diagnose the vehicle by GDS, select "Vehicle" and "DTC Analysis".

   Courtesy of HYUNDAI MOTOR AMERICA

3. Check if "DTC (B165A-00) BLE module malfunction" has occurred.
4. Check the BLE module learning state.
   NOTE:

   • The B165A-00 occurs not only for non-learning, but also for problems with the BLE module itself. If a DTC is occurs, check it according to the "DTC Diagnostic Guide".
