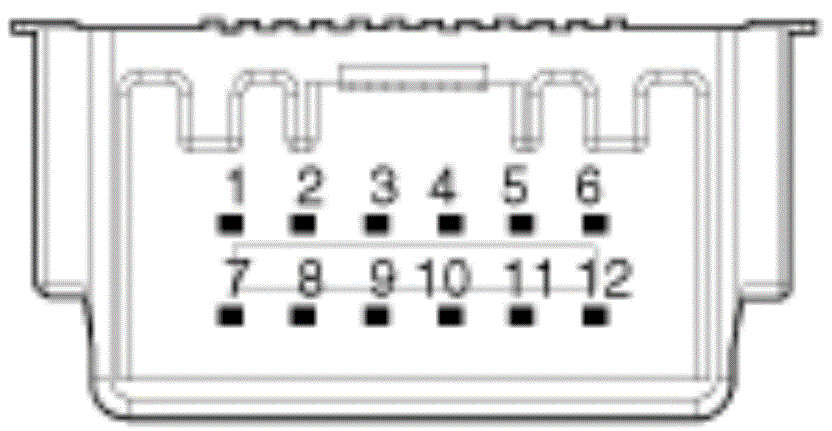

Connector End View And Terminal Description

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin NO	Description	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-	7	IGN1
	2	-	8	-
	3	L-CANFD1 (Low) or A-CANFD (Low)	9	L-CANFD1 (High) or A-CANFD (High)
	4	E-CANFD (Low)	10	E-CANFD (High)
	5	-	11	Ground
	6	-	12	-
