Integrated Body Control Unit (IBU)
- Disconnect the negative (-) battery terminal.

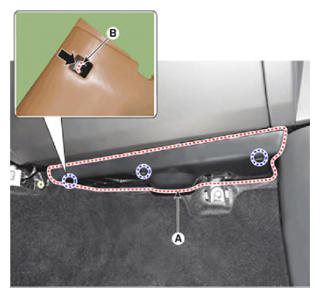

- Press the locking pin (B) in the direction of the arrow and remove the crash pad under cover (A) using a screwdriver or remover.
- Remove the glove box.
(Refer to Body - "GLOVE BOX ")

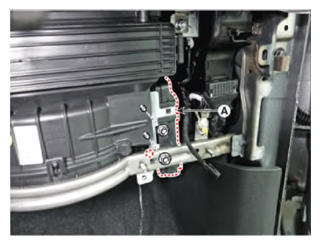

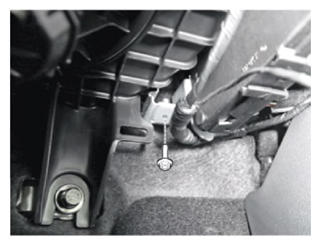

- Remove the IBU (A) after loosening mounting bolt and nuts.

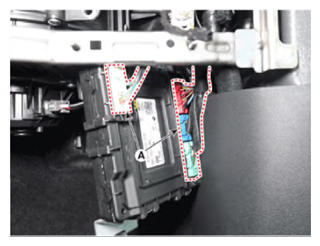

- Remove the IBU after disconnecting IBU connectors (A).
