Removal And Installation

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Turn the steering wheel so that the front wheels are facing straight ahead.
  3. Remove the driver airbag.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

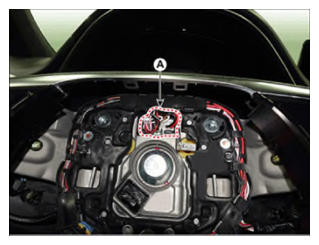

  4. Disconnect the steering wheel connector (A).
    G14753694Courtesy of HYUNDAI MOTOR AMERICA

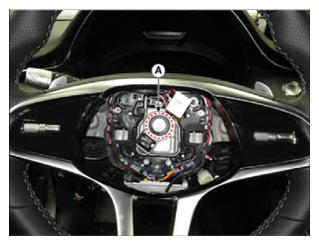

  5. Remove the steering wheel after loosening the mounting bolt (A).

    Tightening torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

    G14753695Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not use the hammer for disconnecting on the steering column not to damage the steering column.
    • Do not reuse the steering lock bolt.

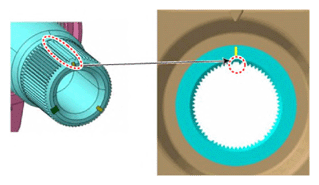

    • When assembling, match the gear teeth as showm below in the illustration.
      G14753696Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedures.
