Steering column module (SCM)

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

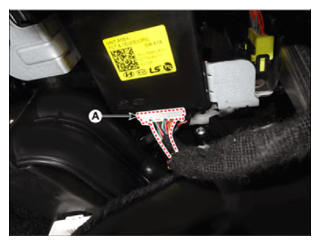

  3. Disconnect the steering column module connector (A).
    G14753742Courtesy of HYUNDAI MOTOR AMERICA

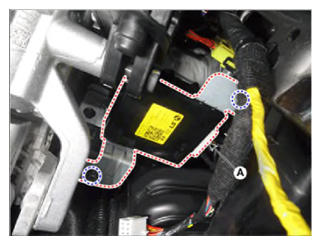

  4. Remove the steering column module (A) after loosening the mounting nuts.
    G14753743Courtesy of HYUNDAI MOTOR AMERICA

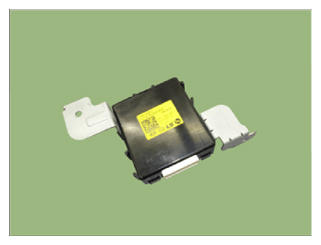

    G14753744Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse the removal procedures.
