Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat back cover.

    (Refer to Front Seat - "FRONT SEAT BACK COVER ")

  2. Remove the front seat cushion cover.

    (Refer to Front Seat - "FRONT SEAT CUSHION COVER ") )

  3. Remove the side airbag (SAB) module.

    (Refer to Restrains (Airbag (Event #1) - "SIDE AIRBAG (SAB) MODULE ")

  4. Remove the lumber support assembly.

    (Refer to Body Electrical System - "LUMBER SUPPORT SYSTEM ")

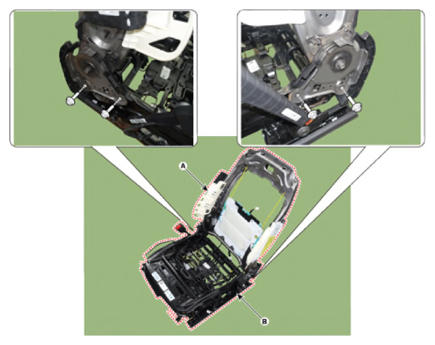

  5. Loosen the mounting bolts and separate the front seat back frame (A) and front seat cushion frame (B).

    Tightening torque:

    58.8 - 68.6 N.m (6.0 - 7.0 kgf.m, 43.4 - 50.6 lb-ft)

    G14723598Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse removal procedure.

    Information

    • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly. (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
    • Before service, be fully aware of precautions and service procedure relevant to air bag. (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
