Components & Components Location: Components

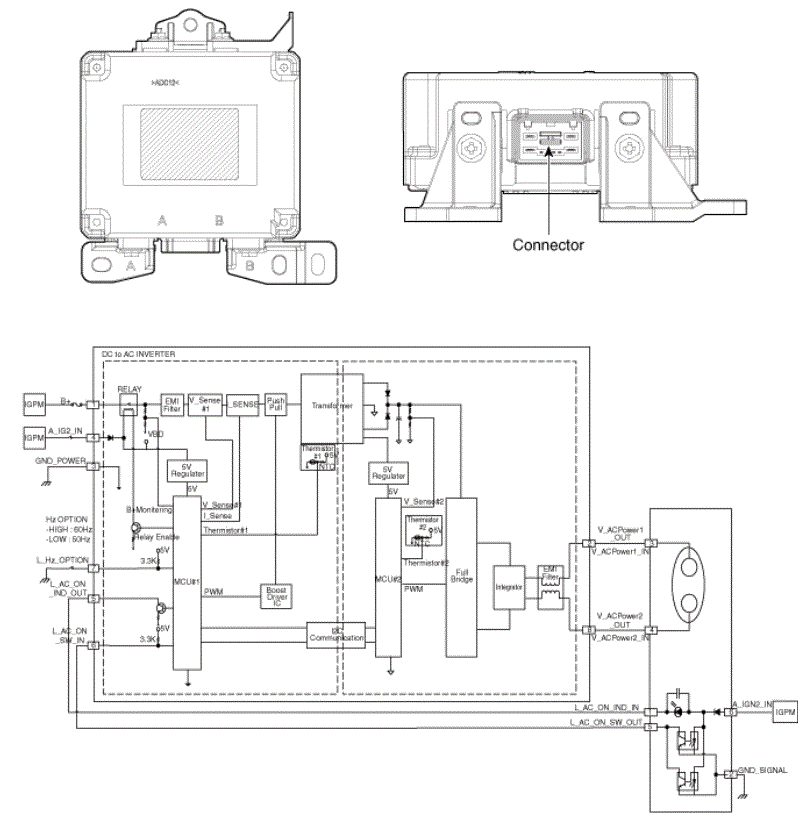

G14727347Courtesy of HYUNDAI MOTOR AMERICA

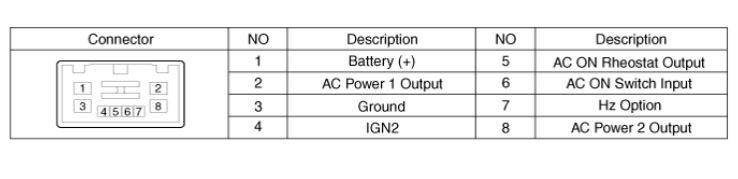

G14727348Courtesy of HYUNDAI MOTOR AMERICA
