Variant Coding Procedures

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

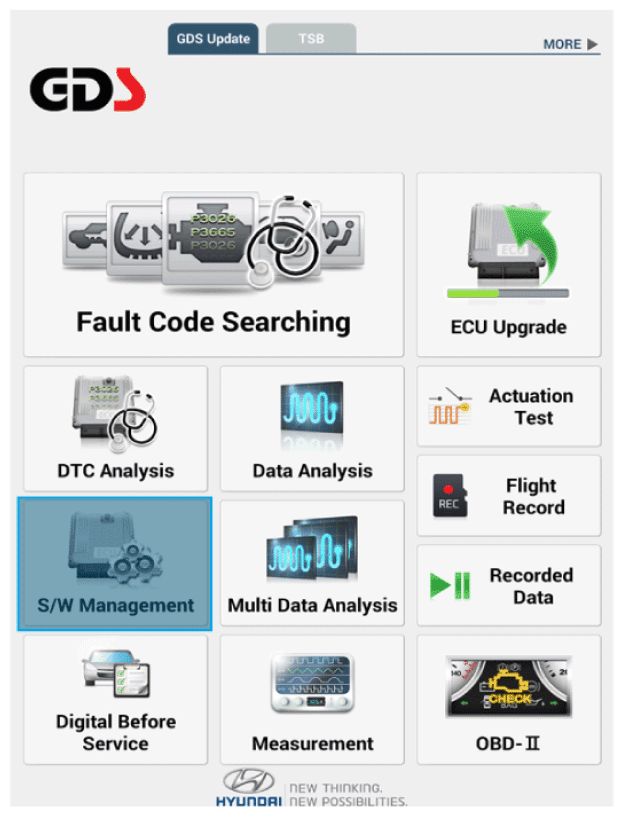

  2. Select the 'S/W Management' and 'Car model'.
    G16877975Courtesy of HYUNDAI MOTOR AMERICA

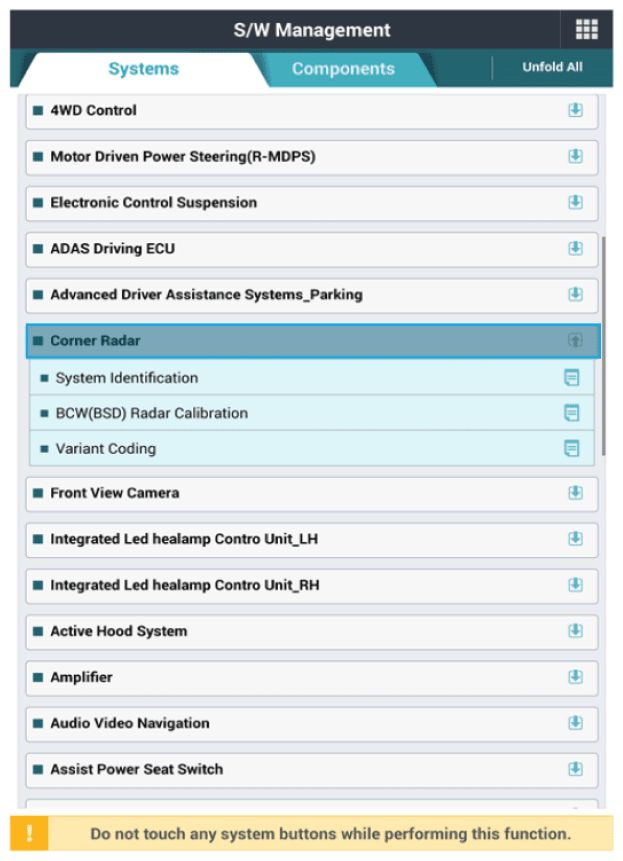

  3. Follow the on-screen instructions to perform the procedure.
G16877976Courtesy of HYUNDAI MOTOR AMERICA
