Components And Components Location: Components

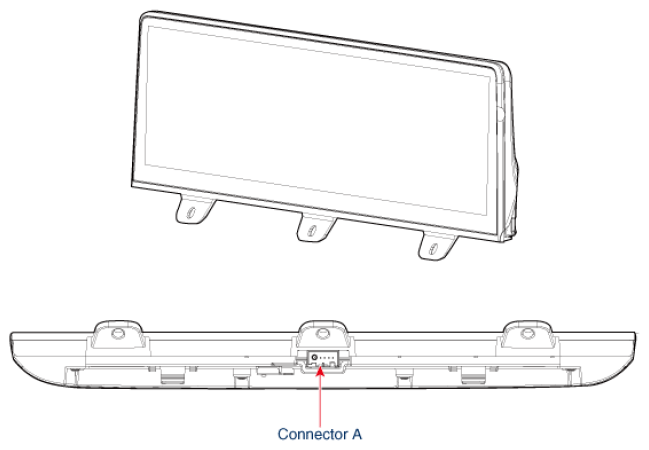

G16872533Courtesy of HYUNDAI MOTOR AMERICA
Connector A NO Description
G16872534Courtesy of HYUNDAI MOTOR AMERICA
 1 Monitor Power
2 -
3 -
4 Monitor Ground
5 Front Monitor Video
