OCS Reset Procedure

Ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF", select S/W Management and "Car model".
select OCS and "Body Sensor Reset".

Courtesy of HYUNDAI MOTOR AMERICA

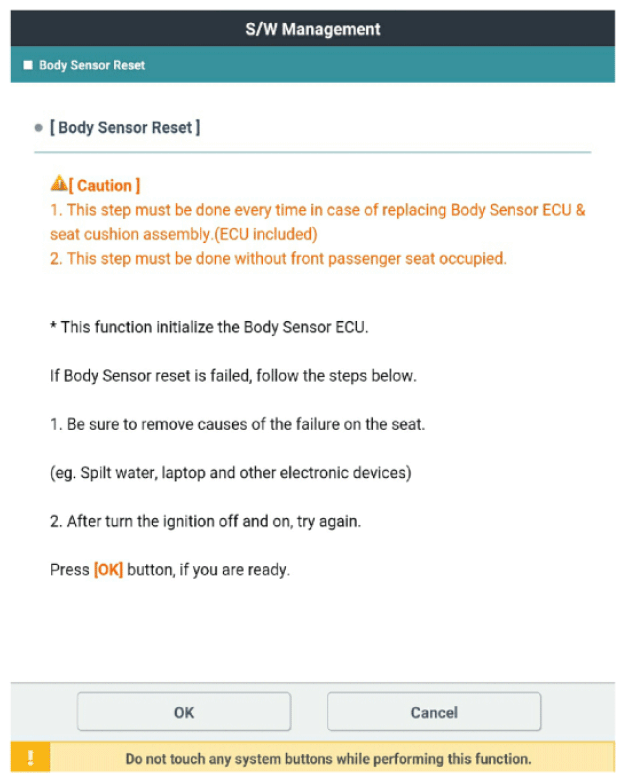

Perform the "Body sensor reset" procedure according to the GDS screen message.
CAUTION:
- After initializing the OCS sensor unit, erase DTC regarding the SRSCM and the OCS sensor unit.
NOTE:
- Refer to the DTC repair information for details in incidental DTC.

DTC Code	Code Name	Description
B176300	Fault in OCS unit	Not initialized, faulty
B176300	Fault in OCS unit	OCS sensor unit damaged
B176400	Fault in OCS	OCS sensor unit, sensor connector not connected
B176400	Fault in OCS	OCS sensor damaged
B17672F	Algorithm cut-off	Failure due to moisture
B17672F	Algorithm cut-off	Failure due to electronic devices
B111117	Ignition switch current high	Ignition switch current high
B111216	Ignition switch current low	Ignition switch current low
B160388	CAN communication OFF	Failure in CAN communication line
B169787	Communication failure in SRSCM	Failure in CAN communication
