[Occupant Classification System Sensor]

  1. Disconnect the battery negative (-) terminal.
  2. Remove the front seat cushion cover [RH].

    (Refer to Body (Interior/Exterior/Electrical) - "FRONT SEAT CUSHION COVER ")

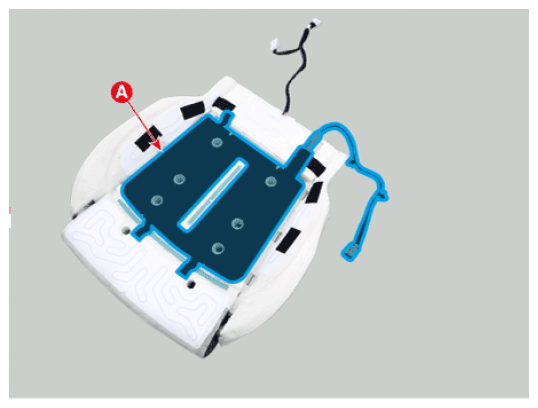

  3. Remove the OCS sensor (A).
    G16818017Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
