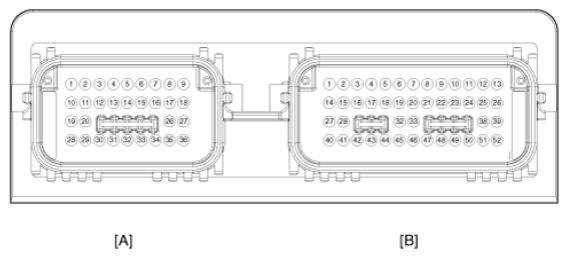

Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

No	Connector A	Connector B
1	Driver airbag #2 (High)	Center side airbag (High)
2	Driver airbag #2 (Low)	-
3	Passenger airbag #2 (Low)	-
4	Passenger airbag #2 (High)	-
5	-	-
6	-	-
7	-	-
8	-	-
9	-	Driver rear seat belt pretensioner (Low)
10	B+	Driver rear seat belt pretensioner (High)
11	Crash output	Passenger rear seat belt pretensioner (High)
12	Passenger airbag #1 (Low)	Passenger rear seat belt pretensioner (Low)
13	Passenger airbag #1 (High)	-
14	Knee airbag (High)	-
15	Knee airbag (Low)	Center side airbag (Low)
16	PAB OFF lamp (Telltale)	Passenger buckle sensor (High)
17	PAB ON lamp (Telltale)	Driver buckle sensor (High)
18	-	Passenger curtain airbag (Low)
19	Driver airbag #1 (High)	Passenger curtain airbag (High)
20	Driver airbag #1 (Low)	Driver curtain airbag (High)
21	-	Driver curtain airbag (Low)
22	-	Passenger front side airbag (Low)
23	-	Passenger front side airbag (High)
24	-	Drive front side airbag (High)
25	-	Drive front side airbag (Low)
26	C-CAN (Low)	-
27	C-CAN (High)	-
28	IGN 1	Driver seat belt pretensioner (Low)
29	Driver front impact sensor (High)	Driver seat belt pretensioner (High)
30	Driver front impact sensor (Low)	-
31	Passenger front impact sensor (Low)	-
32	Passenger front impact sensor (High)	-
33	Airbag ON/OFF switch (High)	Passenger seat belt pretensioner (High)
34	Airbag ON/OFF switch (Low)	Passenger seat belt pretensioner (Low)
35	-	-
36	-	-
37		-
38		-
39		-
40		Ground
41		Diver rear side impact sensor (Low)
42		Diver rear side impact sensor (High)
43		Driver pressure side impact sensor (High)
44		Driver pressure side impact sensor (Low)
45		Passenger side impact sensor (Low)
46		Passenger side impact sensor (High)
47		Driver front impact sensor (High)
48		Driver front impact sensor (Low)
49		Passenger front impact sensor (Low)
50		Passenger front impact sensor (High)
51		Passenger rear side impact sensor (High)
52		Passenger rear side impact sensor (Low)
