How To Check/Adjust Front Radar Installation Angle - Stop Mode

Information

Preparation before the front radar alignment:

NOTE:

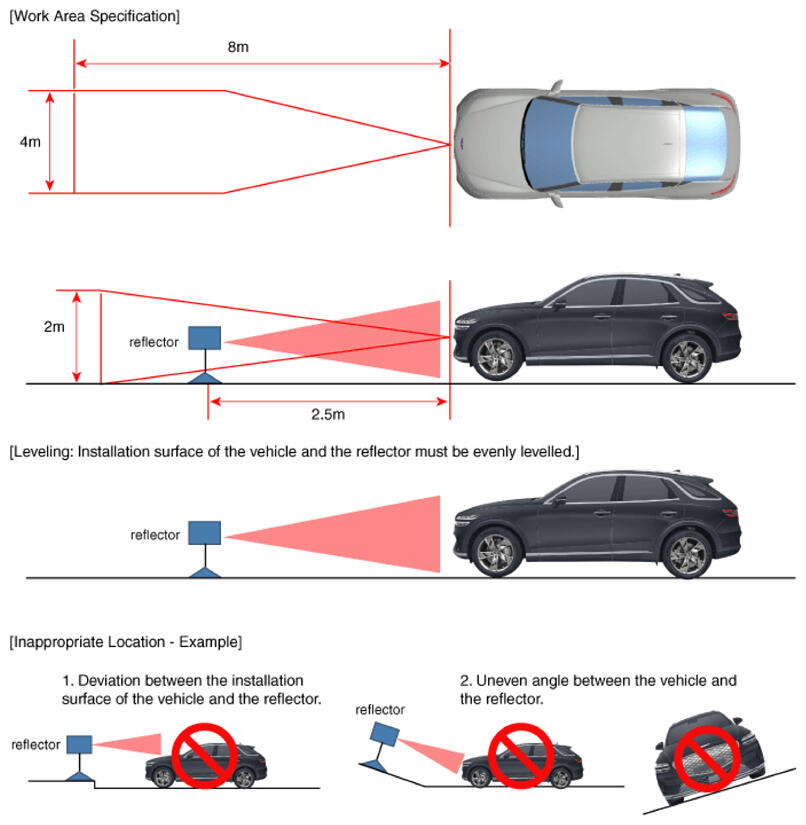

  • Perform in an area with minimum clearance of 8m (26.2 ft) front, 4m (13.1 ft) sides, and 2 m (6.6 ft) above the vehicle.
  • Install the reflector exactly 2.5 m (8.2 ft) away from the Front Radar.
  • The reflector has to be installed at same place (height and angle) as front radar center.

    (If height and angle are different, then adjustment can not be done correctly.)

  • Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where front radar alignment is performed.
  • Make sure to use exclusive reflector (OK964-J5100)
  • Be sure that the vehicle is not moved and free from vibration when performing front radar alignment

    (getting in/out or opening/closing doors).

  • IG has to be on when performing front radar alignment. (engine stop condition)
  1. Stop the vehicle horizontally at a flat place.
    G16818928Courtesy of HYUNDAI MOTOR AMERICA

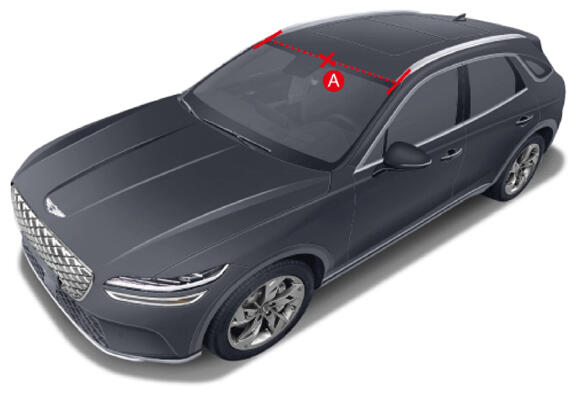

  2. Mark the center point (A) after measuring the distance on top of wind glass.
    G16818929Courtesy of HYUNDAI MOTOR AMERICA

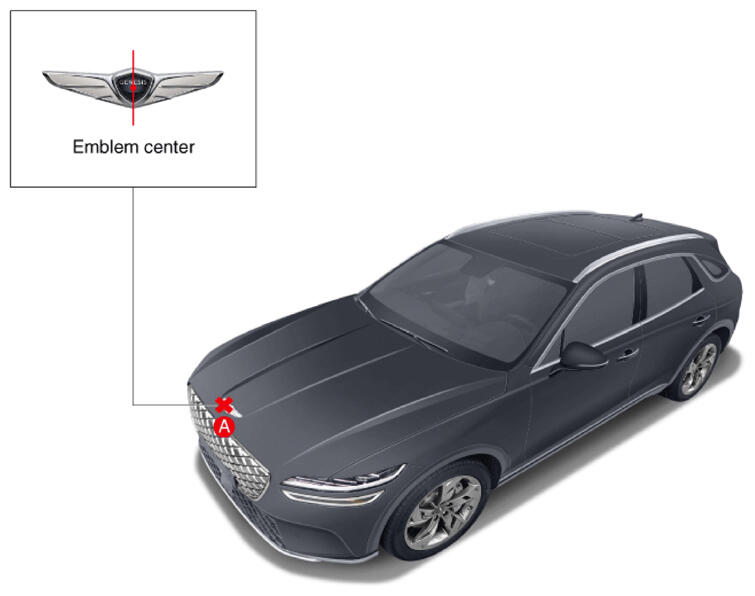

  3. Mark the center point of emblem (B).
    G16818930Courtesy of HYUNDAI MOTOR AMERICA
  4. Install the laser (09964-C1200) to the tripod (09964-C1300).
    G16818931Courtesy of HYUNDAI MOTOR AMERICA

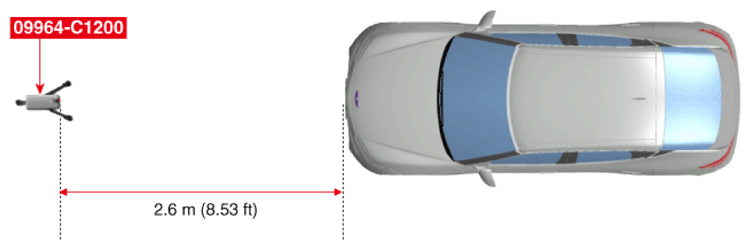

  5. Place the laser (09964-C1200) at 2.6 m (8.53 ft) to the front of the vehicle.
    G16818932Courtesy of HYUNDAI MOTOR AMERICA

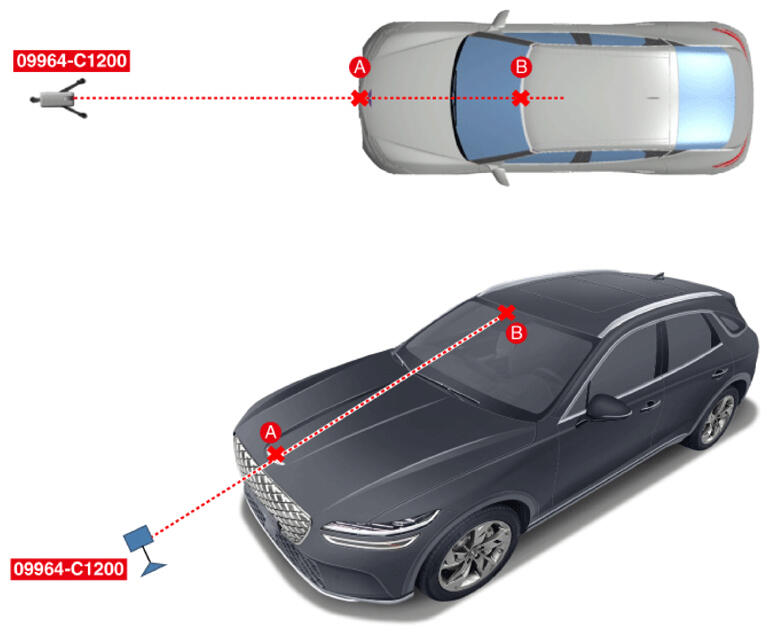

  6. Match the vertical line of laser to (A) and (B) using the laser (09964-C1200).
    G16818933Courtesy of HYUNDAI MOTOR AMERICA

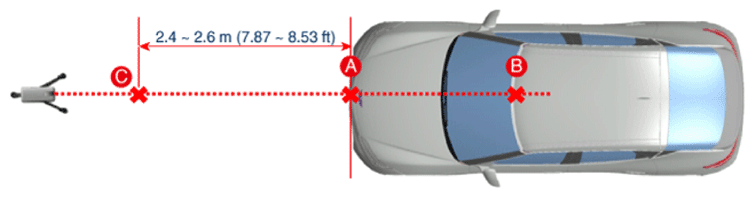

  7. Mark (C) at 2.4 ~ 2.6 m (7.87 ~ 8.53 ft) from (A) in front of the vehicle.
    G16818934Courtesy of HYUNDAI MOTOR AMERICA

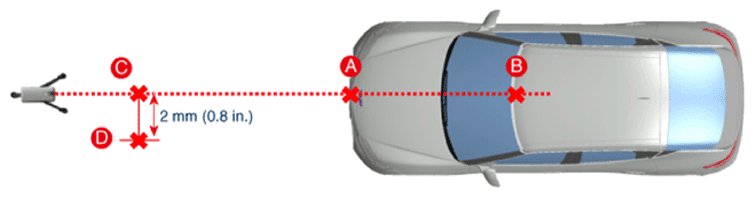

  8. Mark (D) at the place which is 2 mm (0.8 in.) away from (C) to the driver's direction.
    G16818935Courtesy of HYUNDAI MOTOR AMERICA

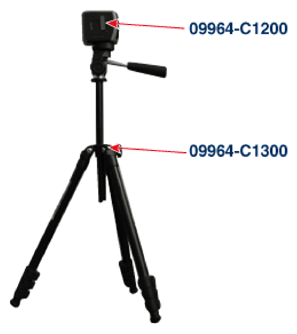

  9. Remove the laser (09964-C1200) from the tripod (09964-C1300).
    G16818936Courtesy of HYUNDAI MOTOR AMERICA

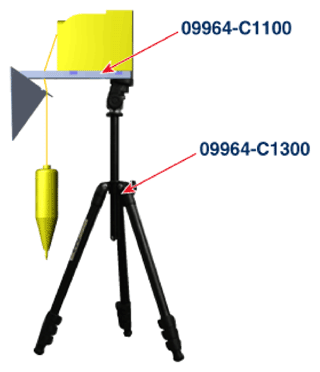

  10. Mount the reflector (09964-C1100) onto the tripod (09964-C1300).
    G16818937Courtesy of HYUNDAI MOTOR AMERICA

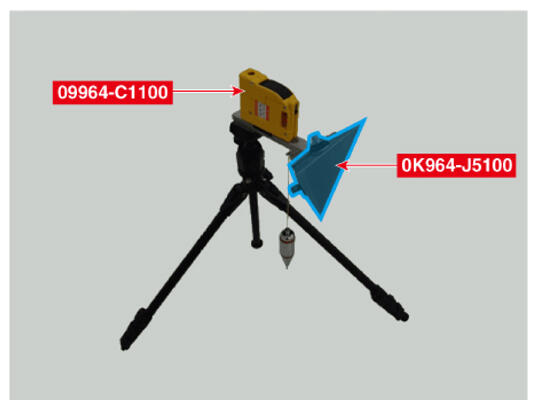

  11. Mount the reflector adapter (0K964-J5100) to the reflector (09964-C1100).
    G16818938Courtesy of HYUNDAI MOTOR AMERICA

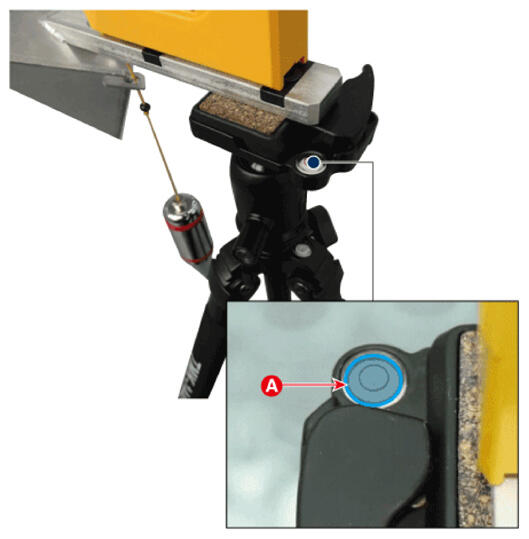

  12. Set the reflector horizontal using the leveler (A) which is built in the tripod (09964-C1300).
    G16818939Courtesy of HYUNDAI MOTOR AMERICA

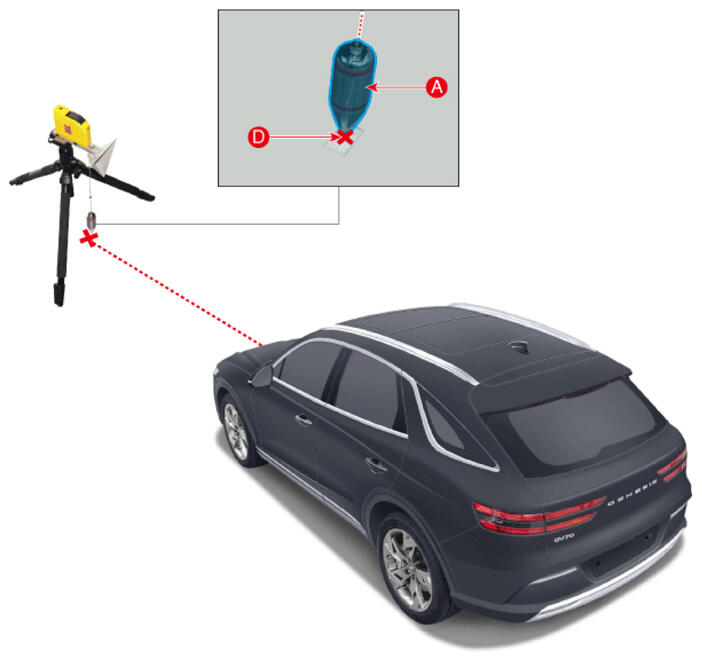

  13. Align the vertical weight (A) of the reflector (09964-C1100) with the point (D).
    G16818940Courtesy of HYUNDAI MOTOR AMERICA

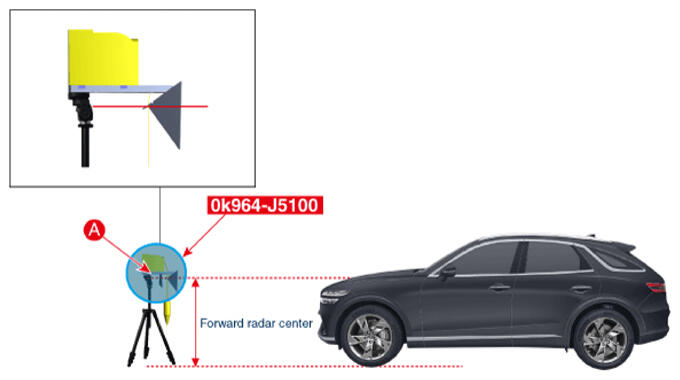

  14. Install the extended reflector adapter (0K964-J5100) with the height of the center coincident with the center of the front radar sensor.
    G16818941Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the vertical weight from the reflector (09964-C1100).
    NOTE:
    • It can be effected to adjustment if the vertical weight is still left.
  16. Check again the front radar and the surface of front bumper for the following items with the eyes.
    NOTE:
    • Make sure that there is no debris, or reflecting object on the surface of the radar.
    • Make sure that there is no debris, or reflecting object on the radiator grill.

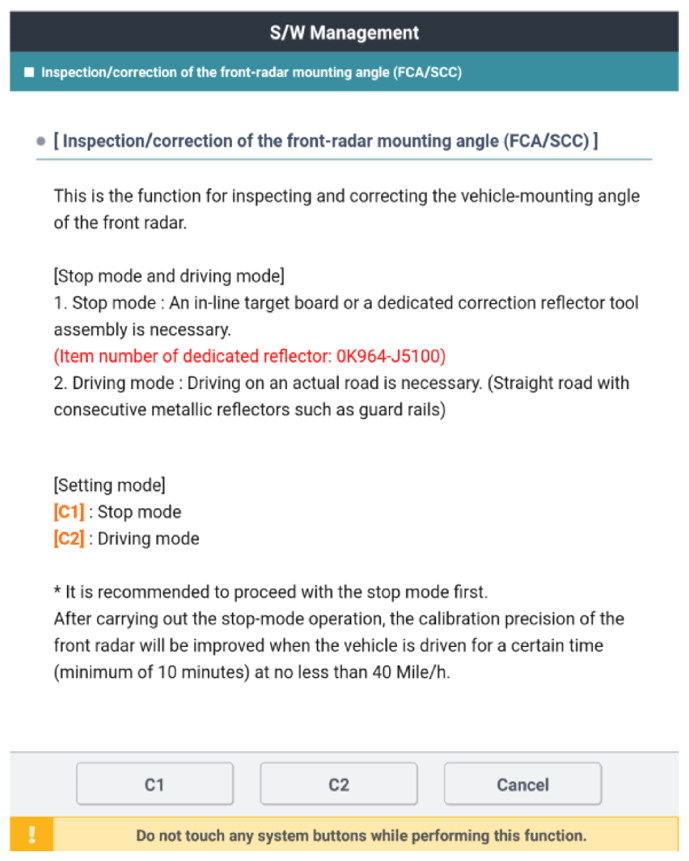

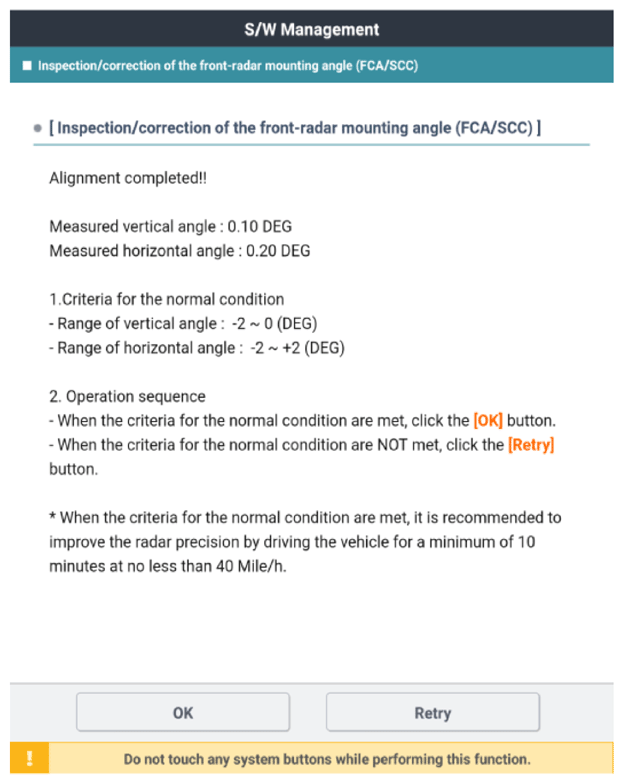

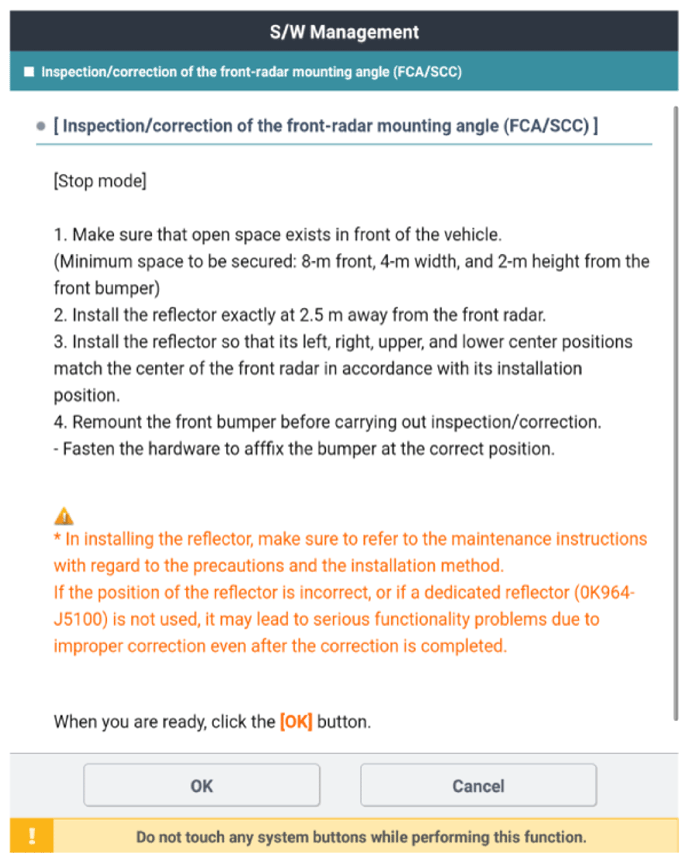

  17. Select C1 (stop mode) to inspect and adjust the front radar installation angle by following procedure on diagnostic tool screen.
    G16818942Courtesy of HYUNDAI MOTOR AMERICA
    G16818943Courtesy of HYUNDAI MOTOR AMERICA
    G16818944Courtesy of HYUNDAI MOTOR AMERICA
  18. In case of front radar inspection/correction failure, check the inspection/correction conditions.
