Surround View Monitor (SVM): Removal: Notes

Information

• Read the specification information of the existing surround view monitor (SVM) before replacing it with a new one.

Front View Camera

1. Remove the front bumper assembly.

   (Refer to Body (Interior/Exterior/Electrical) - "FRONT BUMPER ASSEMBLY ")

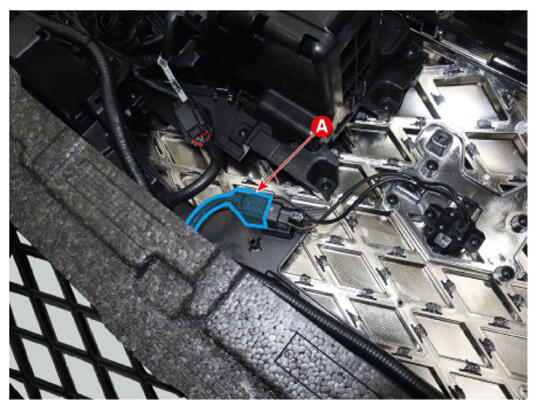

2. Disconnect the front camera connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

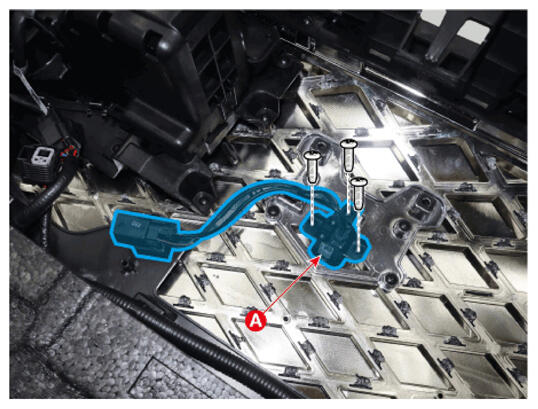

3. Remove the front camera (A) after removing the mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA
