AVN-FPM Learning Mode

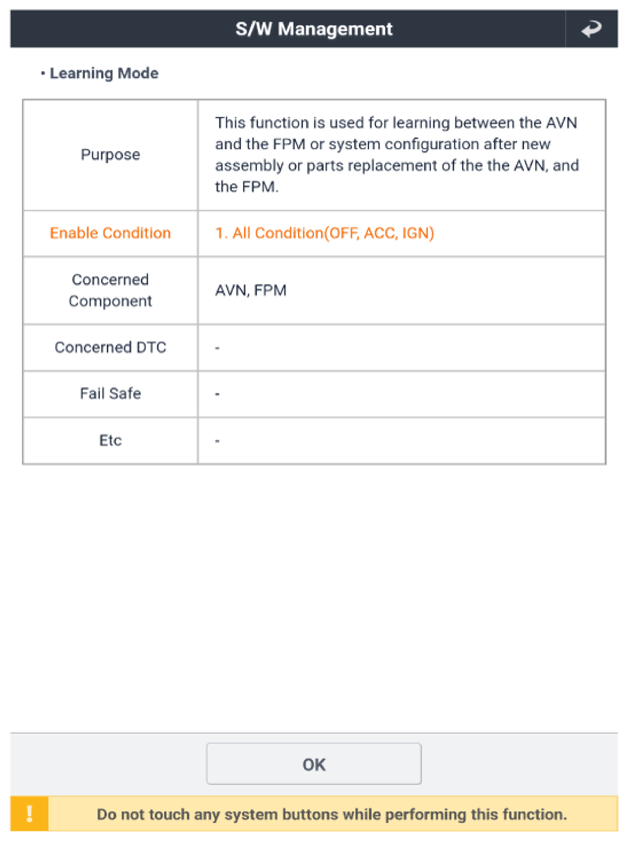

This function is used for learning between the AVN and FPM or system configuration after new assembly or parts replacement of the AVN, and the FPM.

1. Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat. Start the engine (IGN ON) and turn on the diagnostic device.

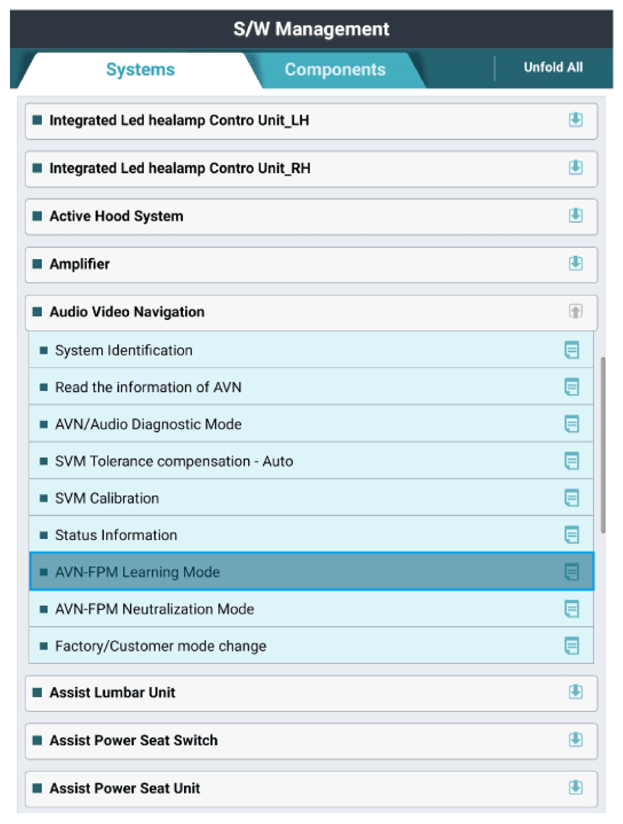

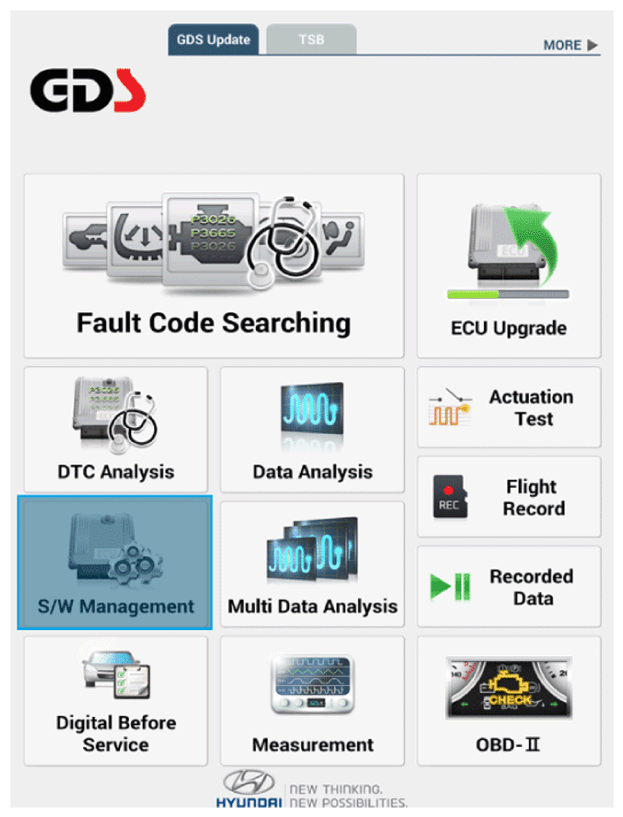

2. Select the 'S/W Management' and 'Car model'.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA
