NFC Key Card Registration With Diagnostic Tools

1. Connect the cable of diagnostic tools to the data link connector in driver side crash pad lower panel.

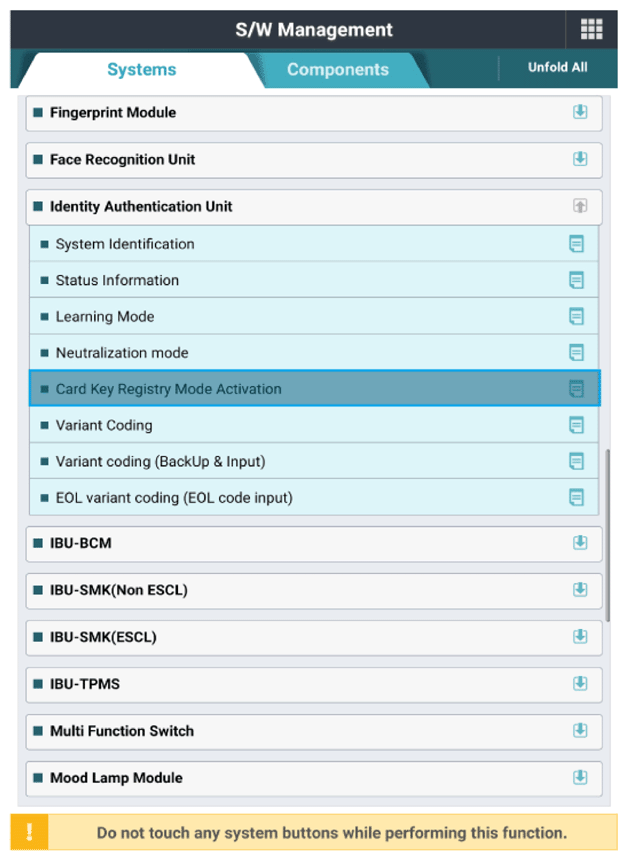

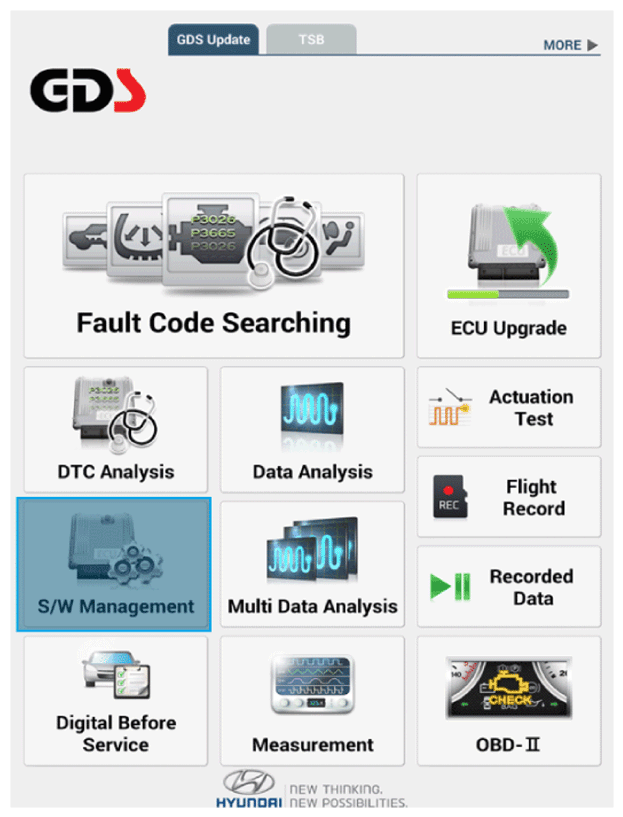

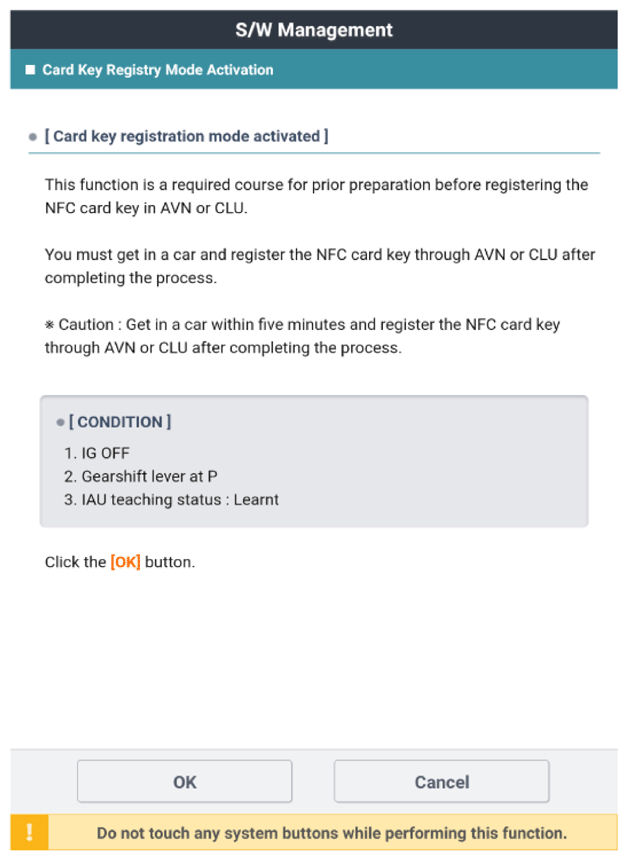

2. Select the "S/W Management" and "NFC Key Card Registration Mode Activation".

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

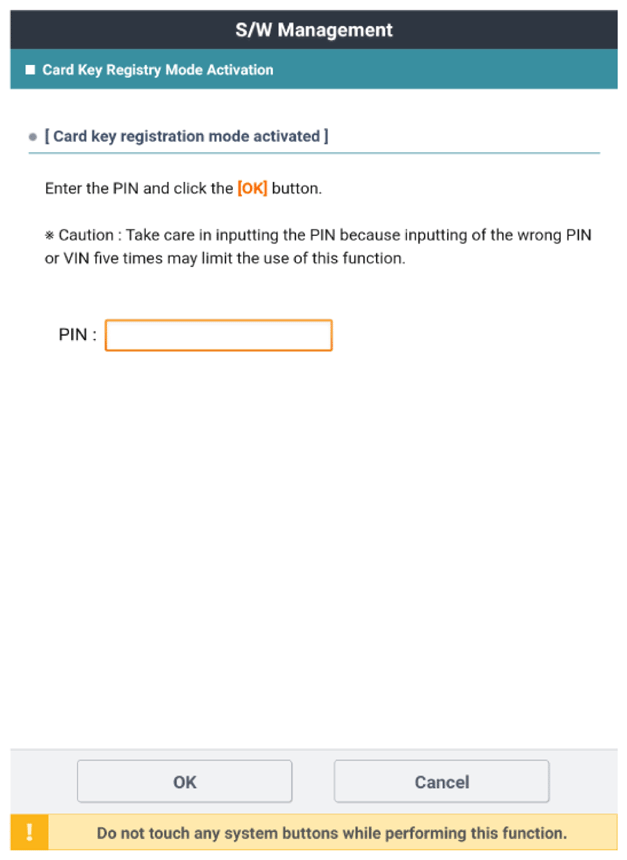

3. Enter the PIN code and VIN in order.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

• If you input bad passwords over 5 times, key card registration is prevented for 1 hour.
