e-Call Unit Back Up Battery

  1. Disconnect the negative (-) battery terminal.
  2. Remove the eCall Unit.

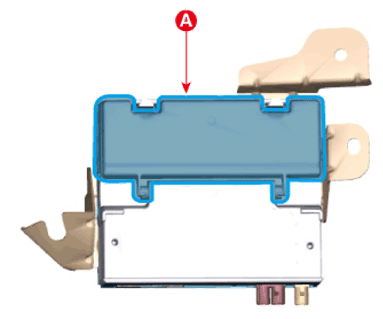

  3. If it is necessary to replace the back-up battery, remove the back-up battery cover (A).
    G16820226Courtesy of HYUNDAI MOTOR AMERICA

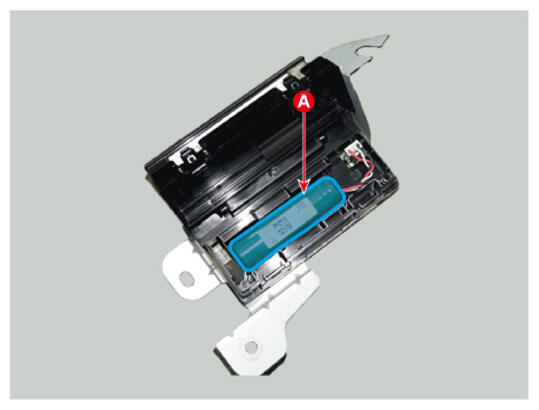

  4. Replace the back-up battery (A).
G16820227Courtesy of HYUNDAI MOTOR AMERICA
