Connector And Terminal Information

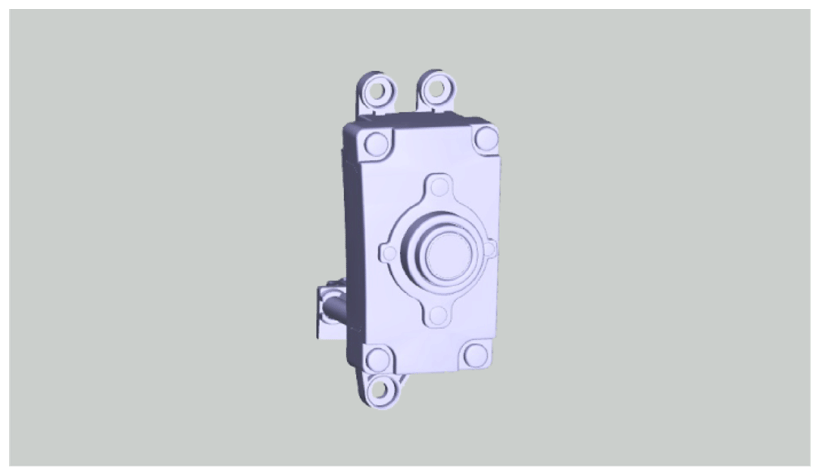

G16820169Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin NO Function
G16820170Courtesy of HYUNDAI MOTOR AMERICA
 1 Battery (+)
2 IGN 1
3 B-CAN (High)
4 B-CAN (Low)
5 -
6 Ground
