Smart Key Buzzer: [Tailgate]

1. Disconnect the battery negative (-) terminal.
2. Remove the tailgate lower trim.

   (Refer to Tailgate - "TAILGATE TRIM ")

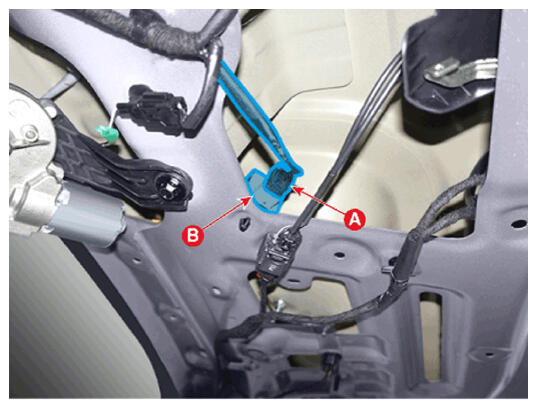

3. Disconnect the smart key buzzer connector (A) and remove the smart key buzzer (B).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
