Antenna Status Check
- Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

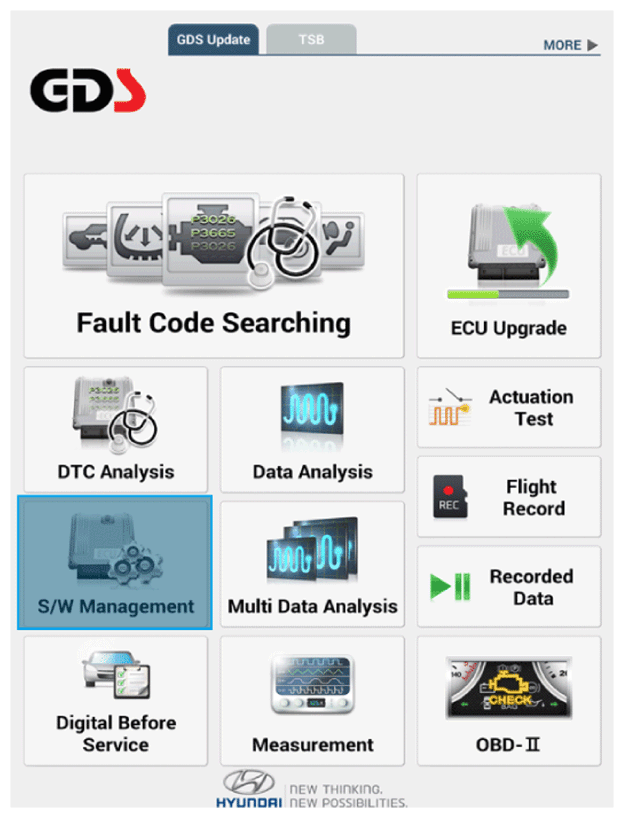

- Select the 'S/W Management' and 'Car model'.

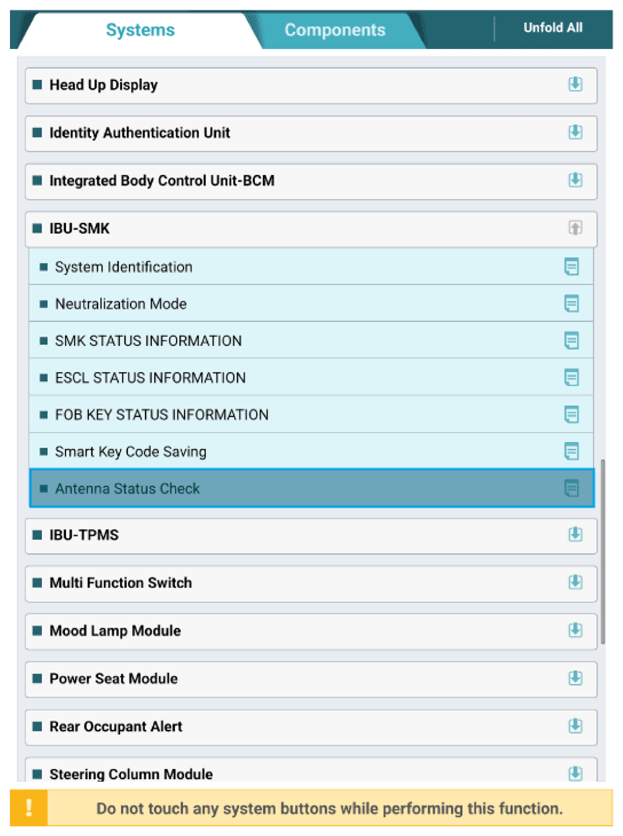

- Select the 'IBU-SMK' and 'Antenna Status Check'.
- Set the smart key near the related antenna and operate it with a Diagnostic tool.
- If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.

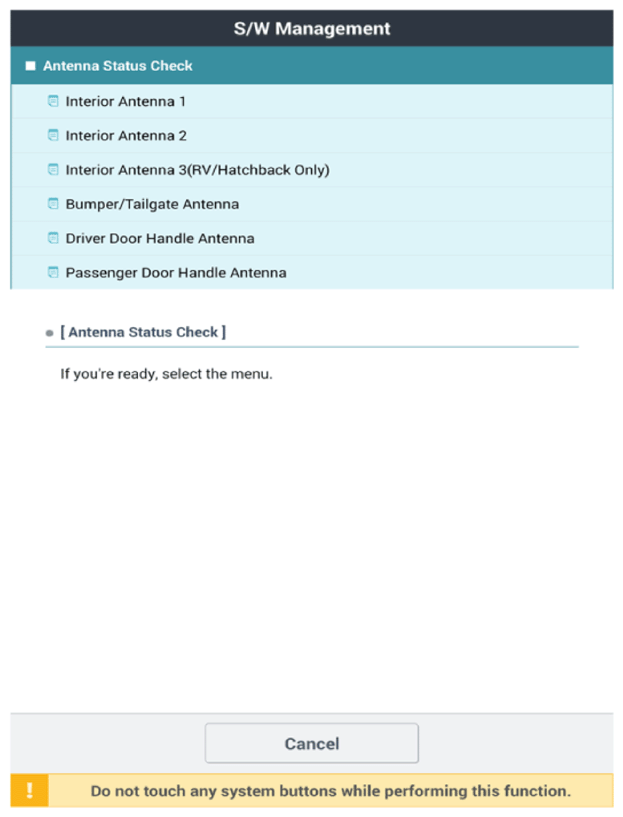

- Antenna status
- Interior Antenna 1
- Interior Antenna 2
- Bumper Antenna
- Driver Door Antenna
- Assist Door Antenna
