Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

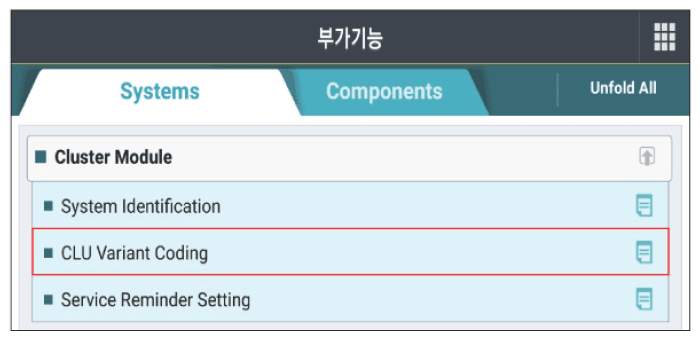

G16822733Courtesy of HYUNDAI MOTOR AMERICA

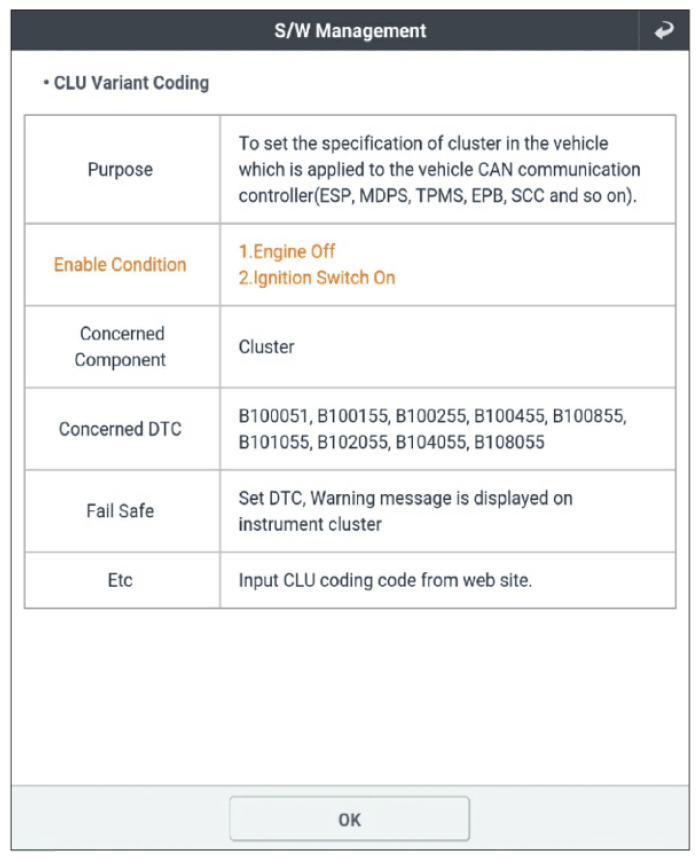

G16822734Courtesy of HYUNDAI MOTOR AMERICA
G16822735Courtesy of HYUNDAI MOTOR AMERICA

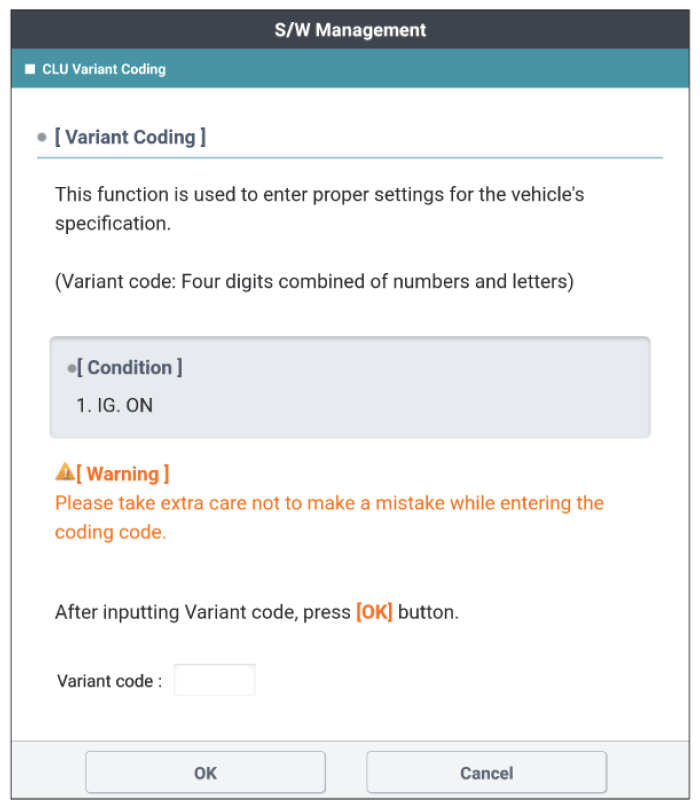

G16822736Courtesy of HYUNDAI MOTOR AMERICA

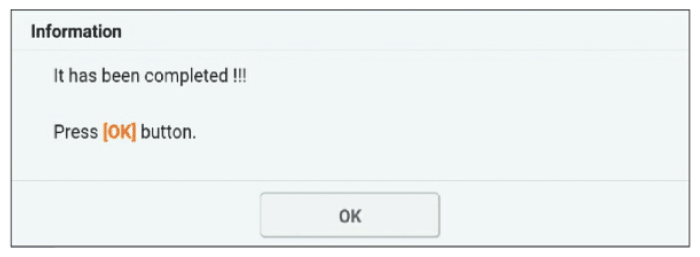

G16822737Courtesy of HYUNDAI MOTOR AMERICA
