Variant Coding

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the EV OFF, select "S/W Management" mode and select "CLU Variant Coding".

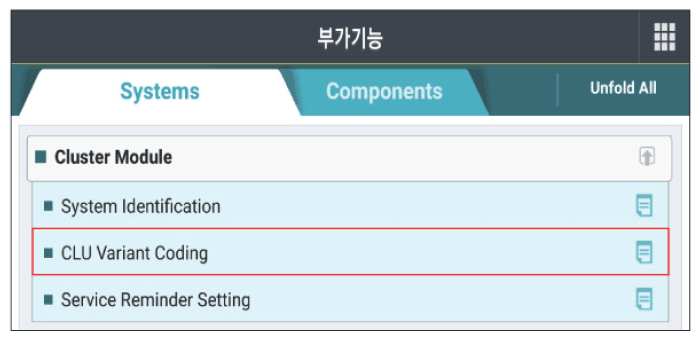

G16822763Courtesy of HYUNDAI MOTOR AMERICA

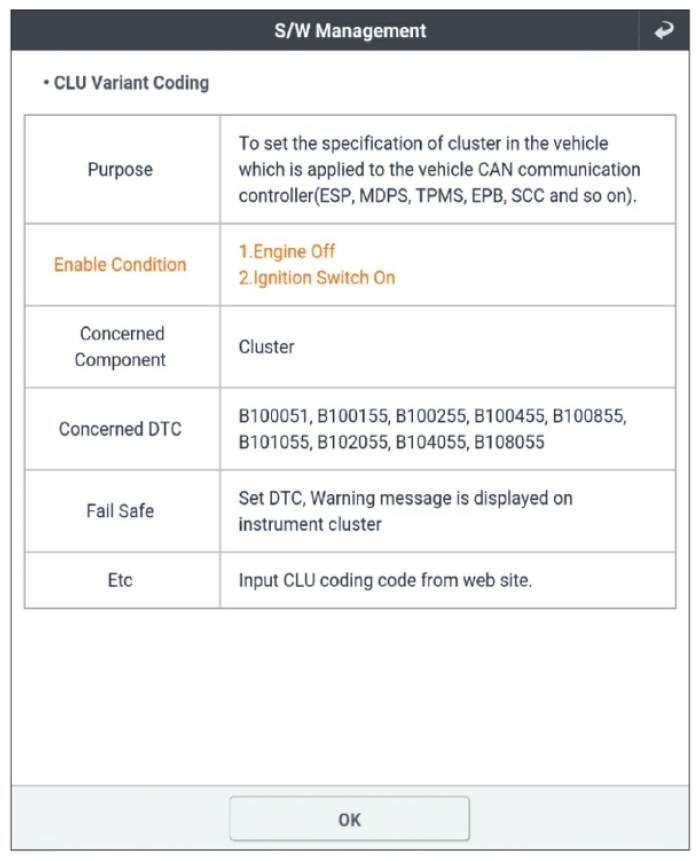

G16822764Courtesy of HYUNDAI MOTOR AMERICA
G16822765Courtesy of HYUNDAI MOTOR AMERICA

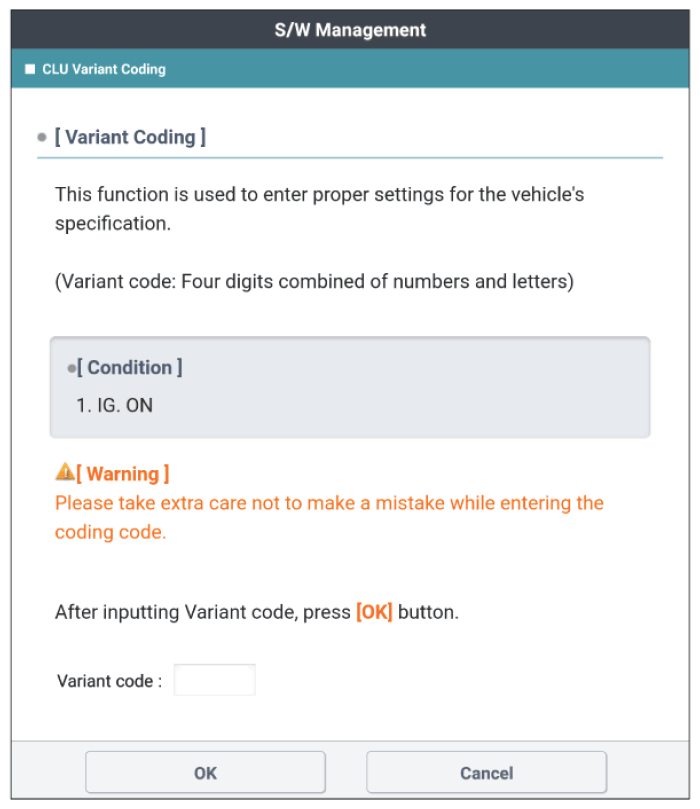

G16822766Courtesy of HYUNDAI MOTOR AMERICA

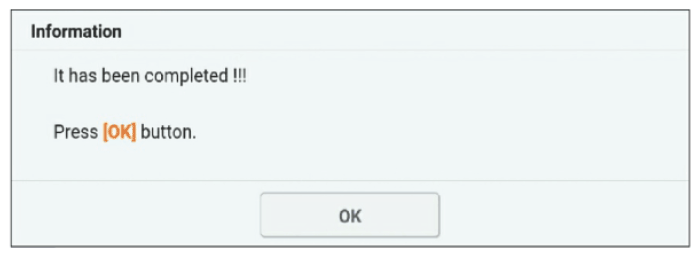

G16822767Courtesy of HYUNDAI MOTOR AMERICA
