Integrated Charging Control Unit (ICCU)

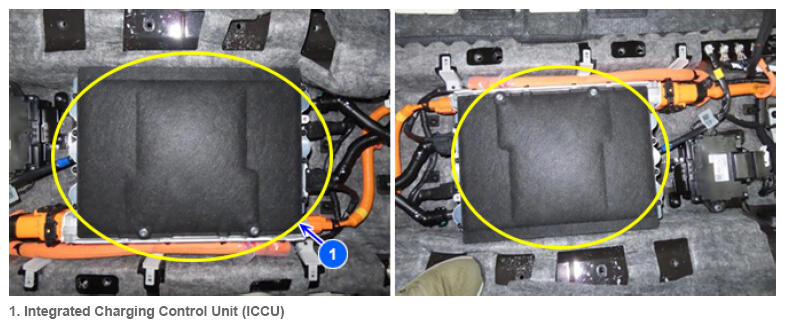

G16824405Courtesy of HYUNDAI MOTOR AMERICA

The integrated charging control unit (ICCU) is a built-in vehicle charger which can charge the high voltage battery of the electric vehicle from an AC 110 - 220V power source while the vehicle is parked. Its maximum output is 11 kW and efficiency is 95%.
