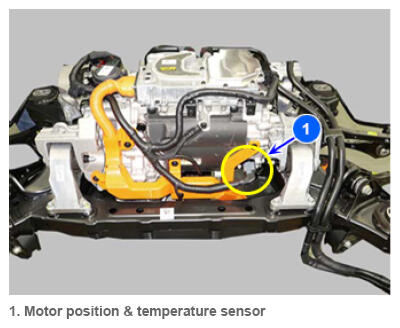

Motor Position & Temperature Sensor
Motor position sensor - The accurate position of the permanent magnet must be known at all times to ensure optimum output control of the motor. Like the CMP sensor on the engine, it detects the position of the rotor in the motor.
Motor temperature sensor - The motor temperature sensor is assembled on the motor coil and is responsible for sensing motor temperature information for the purpose of compensating torque depending on temperature and protecting motor over temperature.
