Vehicle Charge Management System (VCMS)

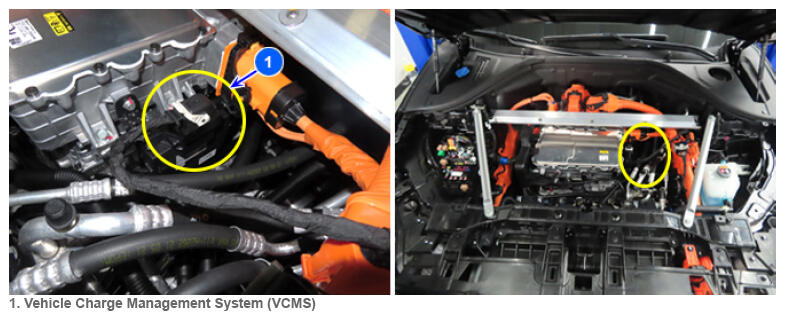

G16824403Courtesy of HYUNDAI MOTOR AMERICA

Vehicle Charge Management System (VCMS) is mounted power electric room. It receives the PLC communication signal sent from the combo-type charging device and converts it into CAN communication signal.
