[Clock Spring]

  1. Disconnect The Battery Negative (-) Terminal.
  2. Remove The Steering Wheel.

    (Refer To Steering System - "Steering Wheel ")

  3. Remove The Steering Wheel Column Shroud Lower Panel.

    (Refer To Body (Interior/Exterior/Electrical) - "Steering Column Shroud Panel ")

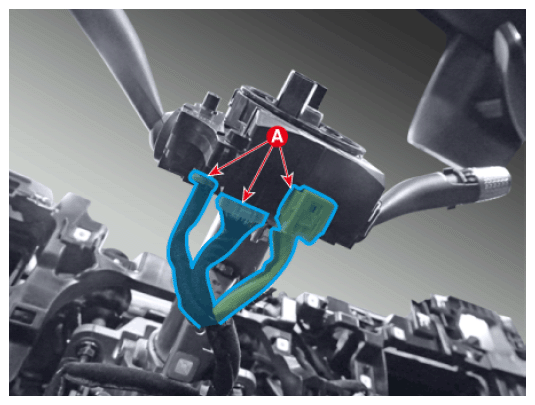

  4. Disconnecting The Clock Spring Wiring Harness And Multifunction Switch Harness Connectors (A).
    G16818038Courtesy of HYUNDAI MOTOR AMERICA

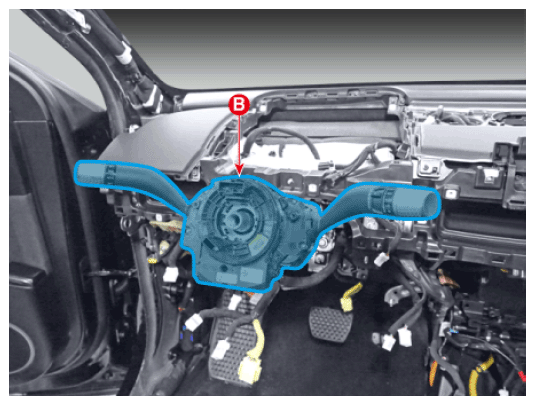

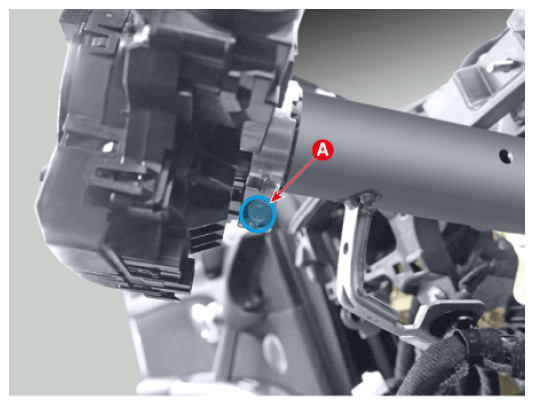

  5. Remove The Clock Spring (B), After Loosening The Clamp Mounting Bolt (A).
    G16818039Courtesy of HYUNDAI MOTOR AMERICA
