Steering Limit Position Setting

NOTE: Steering Limit Position Setting must be done when any of cases is met as shown below.

After replacing Steering Column Module (SCM).
After replacing Electric Tilt & Telescopic Steering Column.
Steering Column Module (SCM) Error (Only 2 second movement while pressing SCM switch)

Connect the self-diagnosis connector (16 pins) located in the lower of driver side crash pad to diagnostic tool.
Turn the IG ON.
Select the Vehicle and 'Steering Column Module' on the menu.

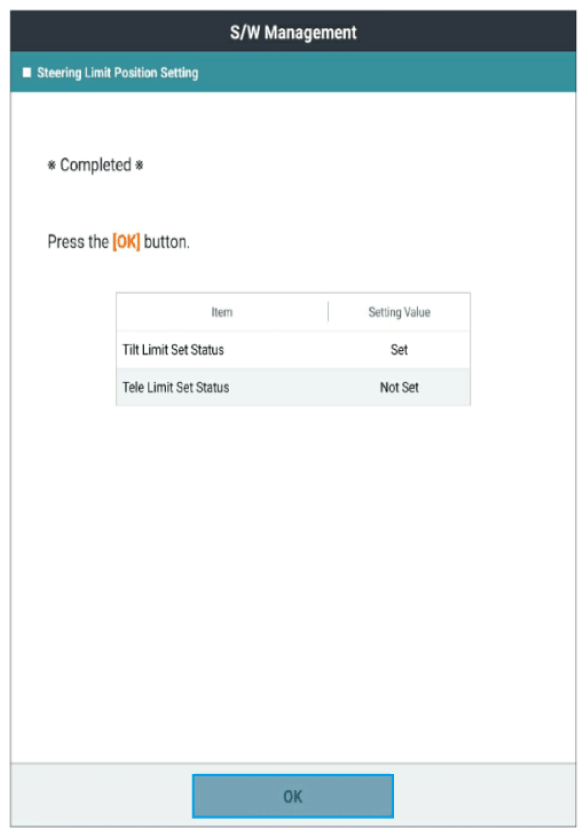

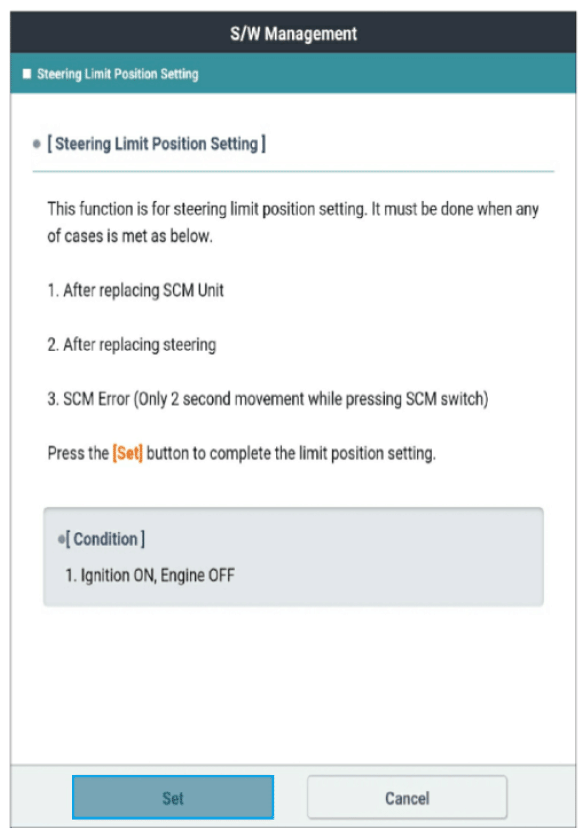

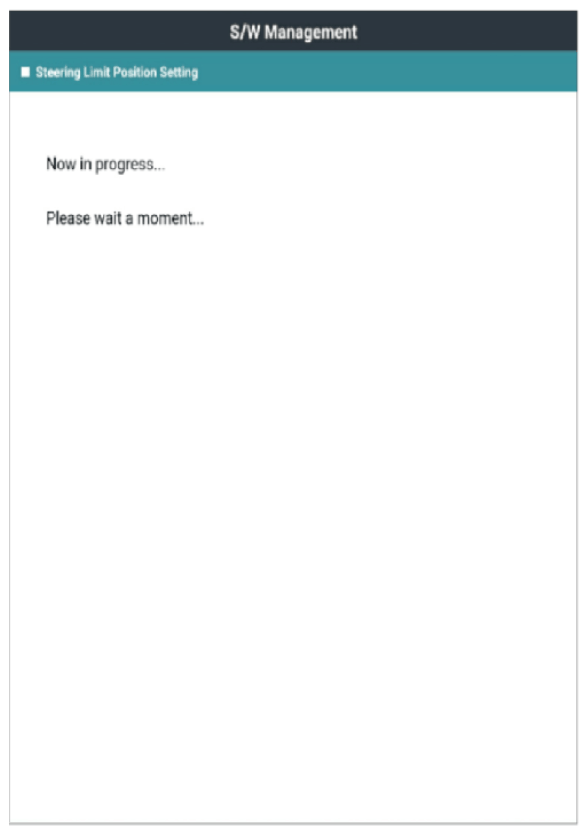

Perform the "Steering Limit Position Setting"

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
