Disassembly And Reassembly

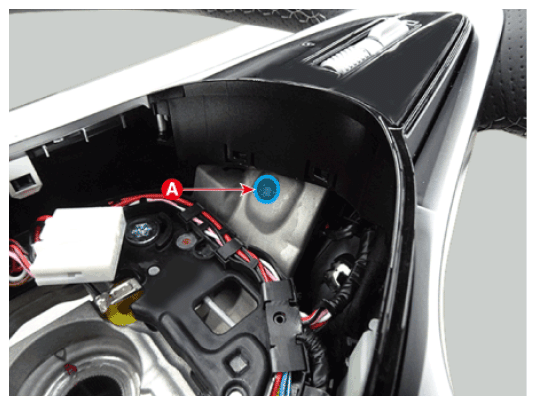

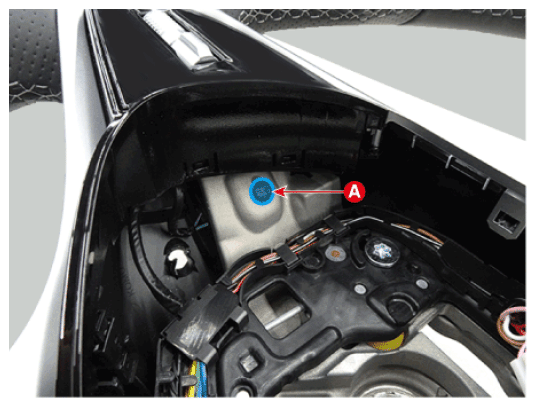

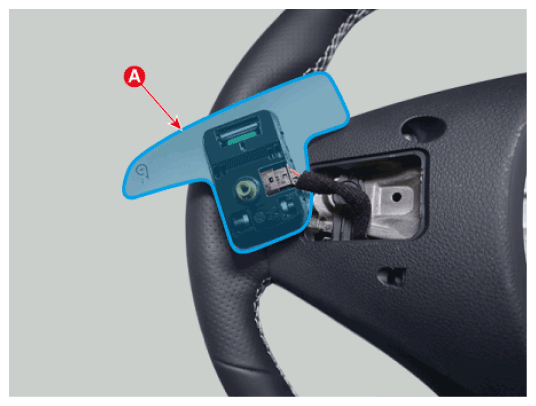

- Remove the paddle shifter after removing the screws (A).

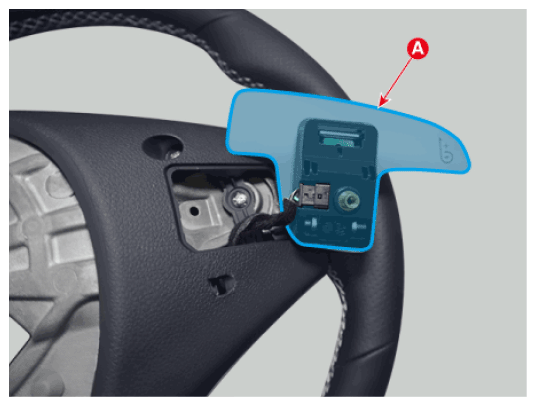

- Disconnect the connectors and remove the paddle shifter (A).
- Remove the steering wheel lower cover (A) after removing the screws.

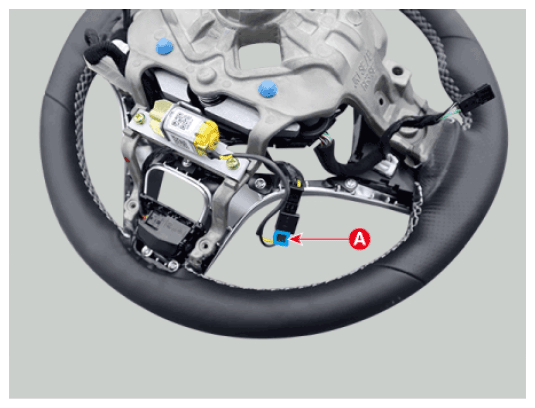

- Disconnect the haptic motor connector (A).
- Remove the haptic motor (A) after removing the screws.

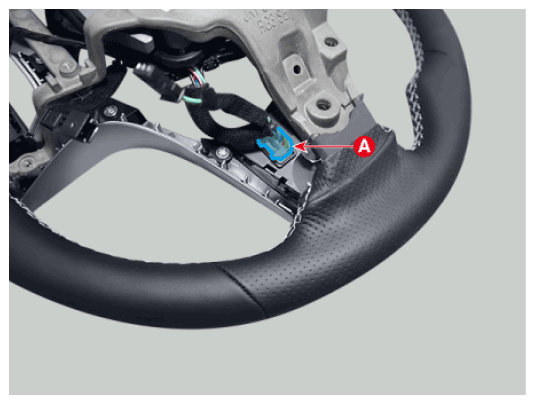

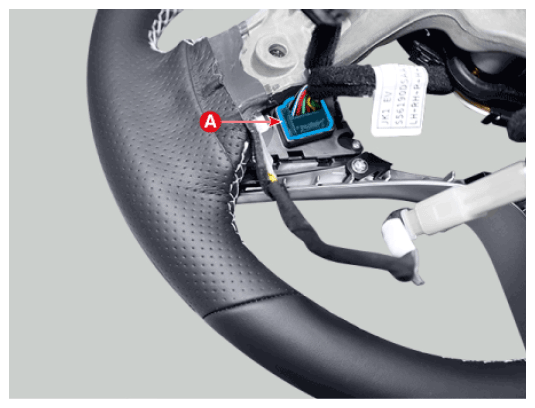

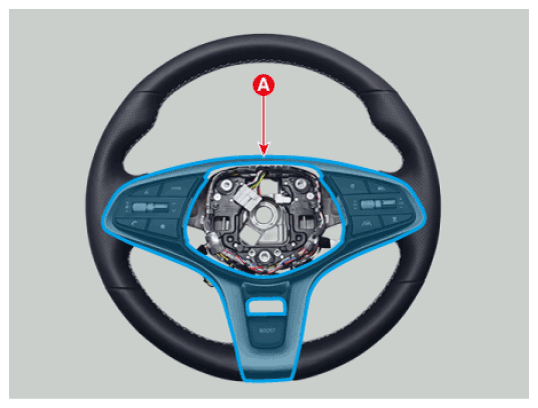

- Disconnect the remote control switch connectors (A).

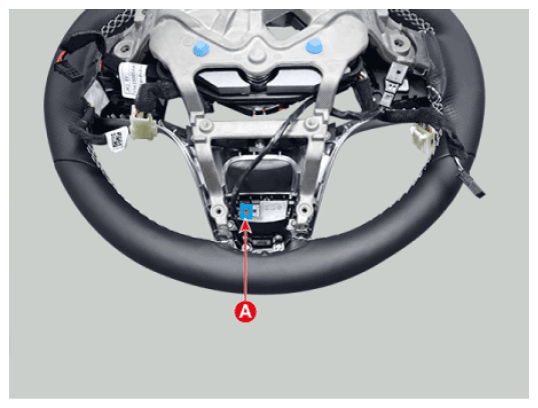

- Disconnect the boost mode switch connector (A).

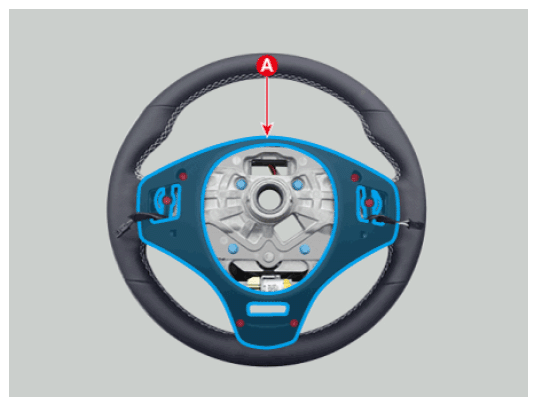

- Remove the steering wheel bezel (A).

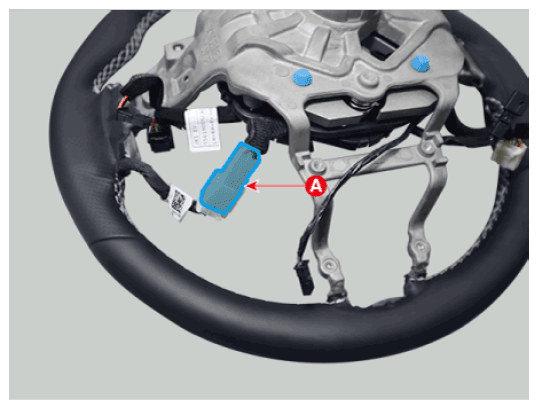

- Disconnect the heated steering wheel connector (A).

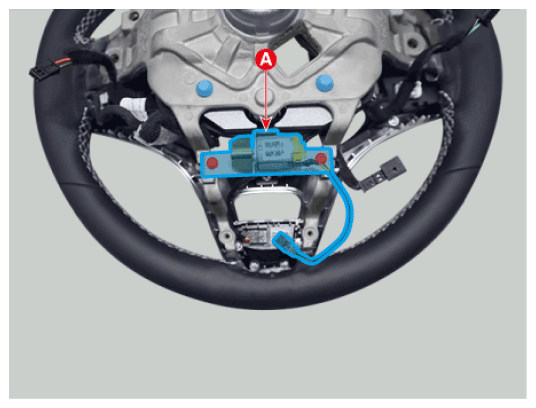

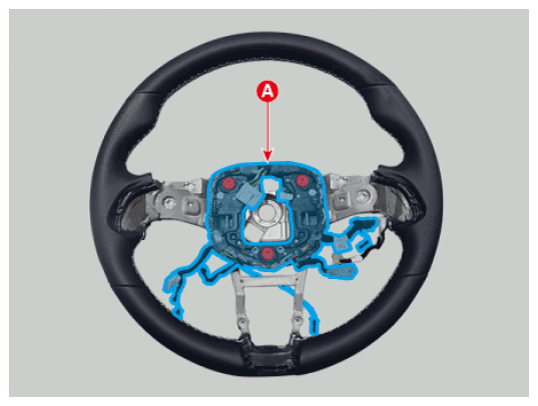

- Remove the horn plate & steering wheel extention wiring (A) after removing the bolts.
Tightening torque:
1.7 - 3.8 N.m (0.18 - 0.38 kgf.m, 1.3 - 2.7 lb-ft)
NOTE:- Do not reuse the horn plate stopper bolts.
- When deploying the driver airbag, be sure to observe the specified torque as it affects securing the holding force.
- Reassemble in the reverse order of disassembly.NOTE:
- When assembling the steering wheel, be careful not to damage the parts by tightening with excessive torque.
- Disconnection or short circuit may occur if the main wiring is not held in place when mounting the steering wheel lower cover.
