Component Function: BCM
BCM* is responsible for monitoring and controlling body electrical systems. It controls output of time or alarm related function with switch signals from switch and switch signals from SJB*via B-CAN communication.
BCM* uses B-CAN (Body CAN) for optimizing wires and communicates with other units to receive required data and transmit data to other units.

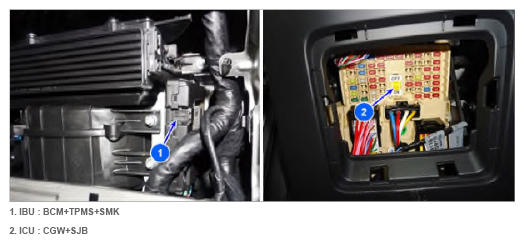

NOTE:
IBU (Integrated Body Control Unit): "IBU"
BCM* (Body Control Module): "IBU"
TPMS (Tire Pressure Monitoring System): "IBU"
SMK (Smart Key control module): "IBU"
ICU (Integrated Central control Unit): "ICU JUNCTION BLOCK"
CGW (Central Gate Way): "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
SJB* (Smart Junction Block): "ICU JUNCTION BLOCK"
BCM* (Body Control Module): "IBU"
TPMS (Tire Pressure Monitoring System): "IBU"
SMK (Smart Key control module): "IBU"
ICU (Integrated Central control Unit): "ICU JUNCTION BLOCK"
CGW (Central Gate Way): "ICU JUNCTION BLOCK_IPS CONTROL MODULE"
SJB* (Smart Junction Block): "ICU JUNCTION BLOCK"
