Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the roof trim assembly.
(Refer to Body (Interior and Exterior) - "ROOF TRIM ASSEMBLY ")

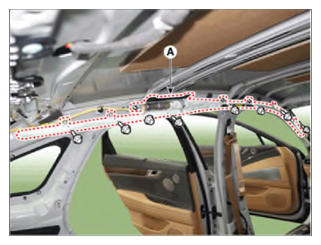

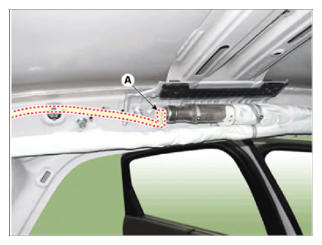

- Disconnect the curtain airbag connector (A).
- After loosening the mounting bolts & nuts remove the curtain airbag.
