Repair Procedures: Removal
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Set the front tires straight-ahead.CAUTION:
- If the steering wheel is not aligned to the center position, it may cause the disconnection and/or bending of the internal cable by improper steering wheel rotation.
- Disconnect the negative (-) battery terminal.WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Remove the driver airbag module (DAB).
[General type]

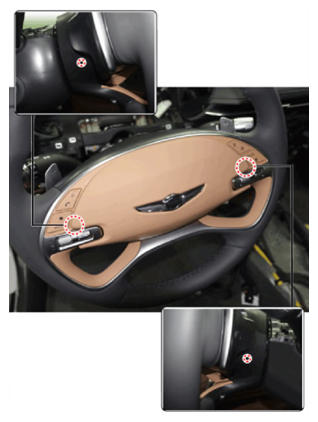

- Put a flat tool (Ø5 mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.

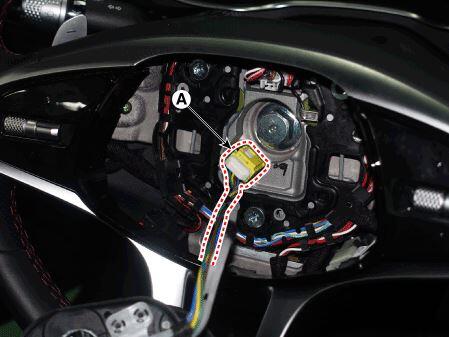

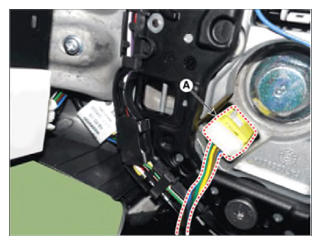

- Press the lock pin, separate the DAB connector (A) and then remove the DAB module.
[Sport type]

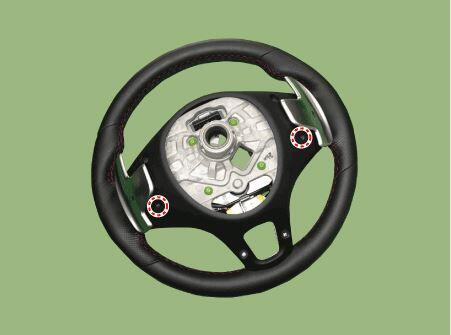

- Put a flat tool (Ø5 mm) into a guide hole located in the left/right of steering wheel and press a DAB fastening pin.
- Remove the steering wheel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
- Loosen the steering wheel column shroud panel.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")

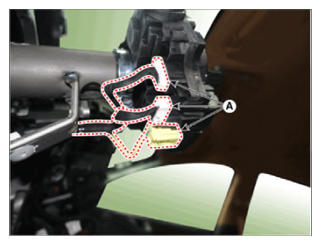

- Press the lock pin and then separate the connectors (A).

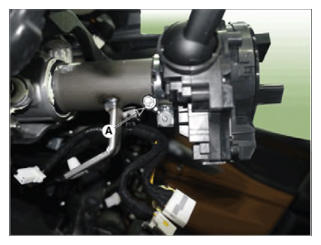

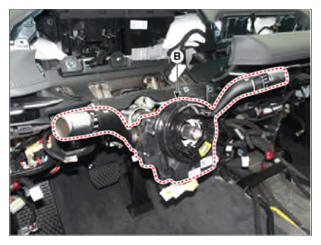

- Loosen the clamp mounting bolt (A) and then remove the multifunction switch & clock spring assembly (B).
