Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install in the reverse order of removal.
    NOTE:
    • Use a new washer (A) whenever installing.

      [Front]

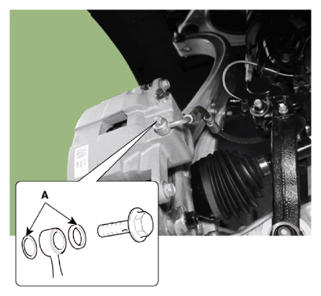

      [Mando 17, 18 inch]

      G15549012Courtesy of HYUNDAI MOTOR AMERICA

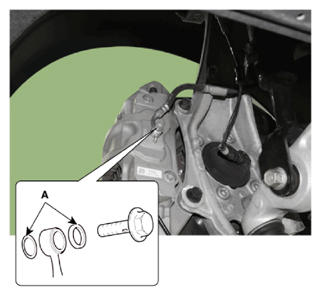

      [Continental 19 inch]

      G15549013Courtesy of HYUNDAI MOTOR AMERICA

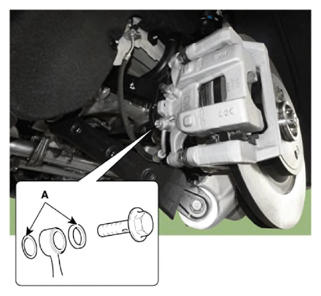

      [Rear]

      G15549014Courtesy of HYUNDAI MOTOR AMERICA
  2. After installing, bleed the brake system.

    (Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")
