Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Install in the reverse order of removal.

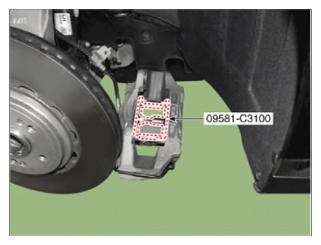

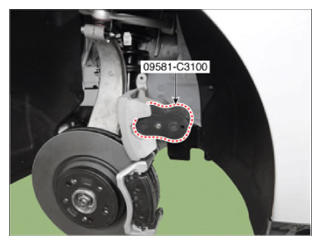

- Use the SST (09581-C3100) when installing the brake caliper assembly.
[Mando 17, 18 inch]
[Continental 19 inch]
- After installing, bleed the brake system.
(Refer to BRAKE BLEEDING PROCEDURES Brake System - "Brake System Bleeding Procedures")
