Operation And Leakage Check: Notes
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

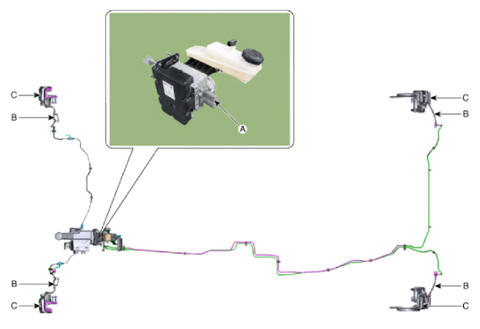

Check all of the following items:
| Component | Procedure |
|---|---|
| Integrated Electronic Booster (IEB) (A) | Check brake operation by applying the brakes during a test drive. If the brakes do not work properly, check the IEB. Replace IEB as an assembly if it does not work properly or if there are signs of leakage. |
| Brake hoses (B) | Look for damage or signs of fluid leakage. Replace the brake hose with a new one if it is damaged or leaking. |
| Caliper piston seal and piston boots (C) | Check brake operation by applying the brakes. Look for damage or signs of fluid leakage. If the pedal does not work properly, the brakes drag, or there is damage or signs of fluid leakage, disassemble and inspect the brake caliper. Replace the boots and seals with new ones whenever the brake caliper is disassembled. |
