Repair Procedures: Installation

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fix the brake pedal not to move and insert the switch until it contacts with the switch stopper bracket.
    G15549123Courtesy of HYUNDAI MOTOR AMERICA
  2. After inserting, turn the brake switch 45° clockwise, and then assemble locking plate (A) by pushing.
    G15549124Courtesy of HYUNDAI MOTOR AMERICA

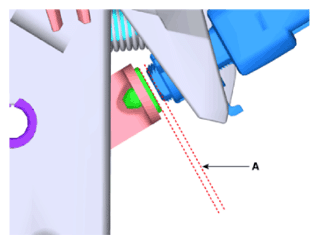

  3. Confirm the gap between stop lamp switch and bracket.

    Stop lamp clearance (A):

    1.0-2.0 mm (0.04 - 0.08 in.)

    G15549125Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.

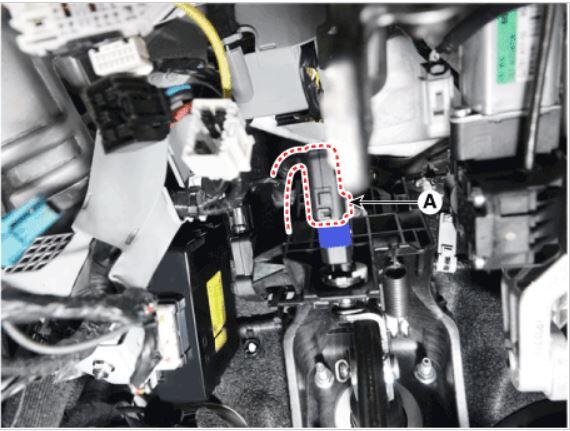

  4. Install the stop lamp switch connector (A).
    G15549126Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")
