Quarter Fixed Glass: Removal
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the roof trim.
(Refer to Roof Trim - "ROOF TRIM ASSEMBLY ")

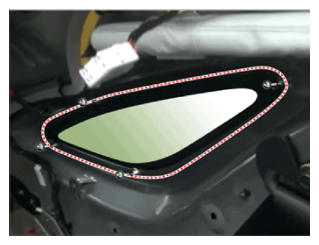

- Loosen the quarter fixed glass mounting nuts.
- Remove the quarter fixed glass front/rear clips.
- Cut out the quarter fixed glass sealant using the utility knife.NOTE:
- Do not scrape down to the painted surface of the body as bonding strength may get diminished on damaged paint.
Information
- Mask off surrounding surfaces before painting.

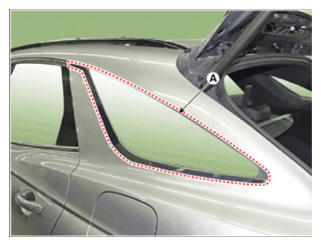

- Remove the quarter fixed glass (A).
