Battery Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery (-) terminal.

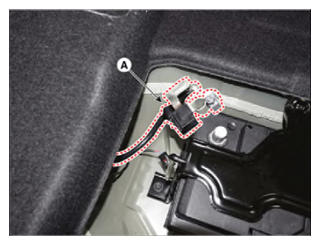

- Disconnect the battery sensor connector (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

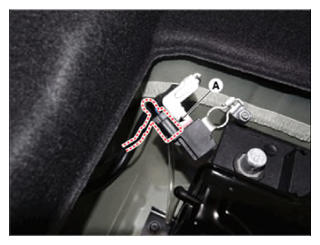

- Remove the battery sensor (A).
Tightening torque:
26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 Ib-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
