Steering Column Module (SCM) Switch

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the steering column shroud lower panel.

    (Refer to Body - "STEERING COLUMN SHROUD PANEL ")

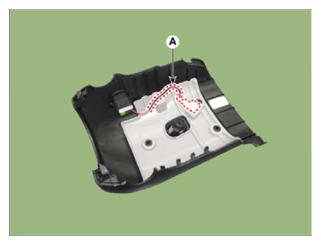

  4. Disconnect the steering module switch connector and clip (A).
    G14753745Courtesy of HYUNDAI MOTOR AMERICA

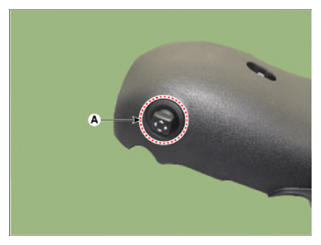

  5. Using the (-) driver, remove the steering column module switch.
    G14753746Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedures.
