Integrated Body Control Unit (IBU)

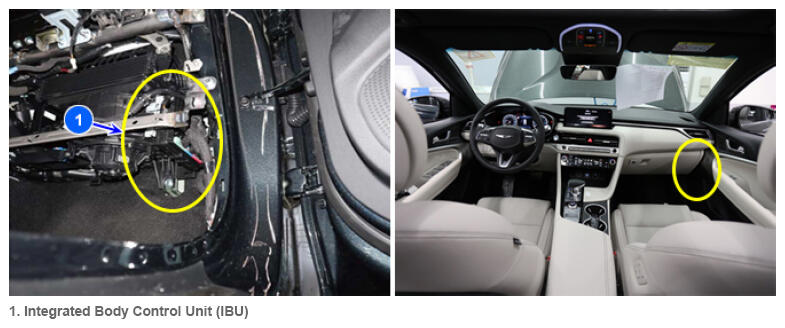

G16826328Courtesy of HYUNDAI MOTOR AMERICA

IBU performs the time control function and alarm control output function according to the switch signal directly sensed by itself, and the switch signal transmitted by SJB* to the CAN network. And it is connected to ICU* to form B-CAN network and P-CAN network of the vehicle.
