Engine Control System Diagnosis - 2.5L (7 Of 7)
>>
DTC P2251-00: O2 Sensor Reference Ground Circuit/Open (Bank 1 Sensor 1)
>>
Troubleshooting
>>

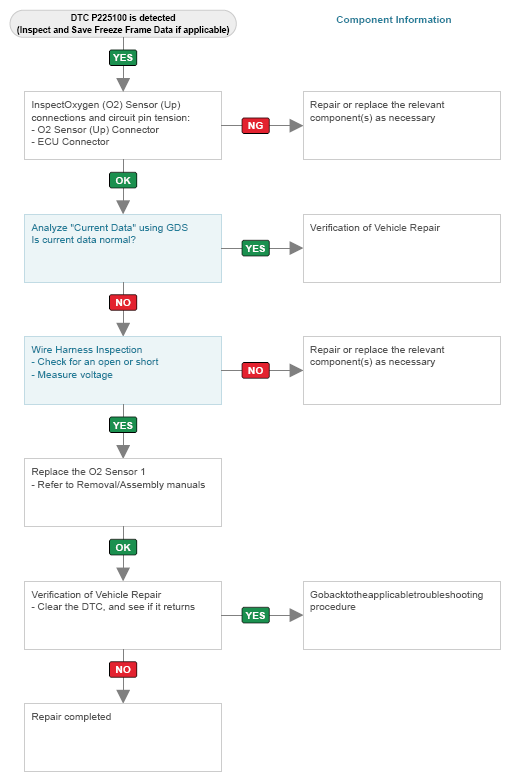

Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
