Engine Control System Diagnosis - 2.5L (7 Of 7)
>>
DTC U1343-00: Lost Communication With Smart Cruise Control Module
>>
Troubleshooting
>>

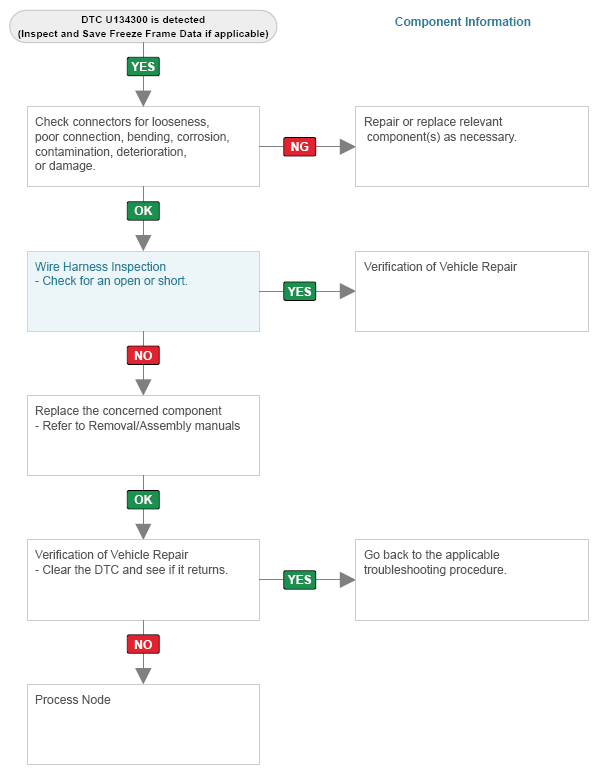

Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
