Repair Procedures: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Use seat covers to avoid damaging any surfaces
- Remove the rear pillar trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")

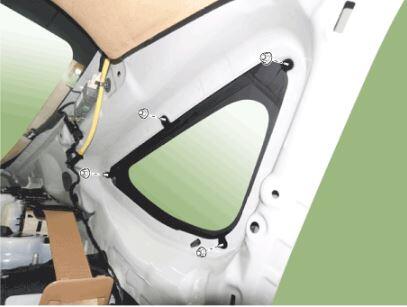

- Loosen the quarter fixed glass mounting nuts.
- Cut out the quarter fixed glass sealant using the utility knife.NOTE:
- Do not scrape down to the painted surface of the body as bonding strength may get diminished on damaged paint.
Information
- If damaged, apply a repair paint or a antirust.

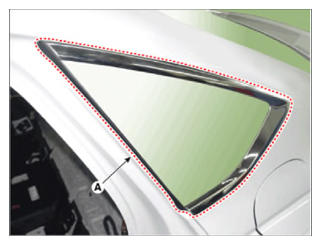

- Remove the quarter fixed glass (A).
