Components And Components Location: Component

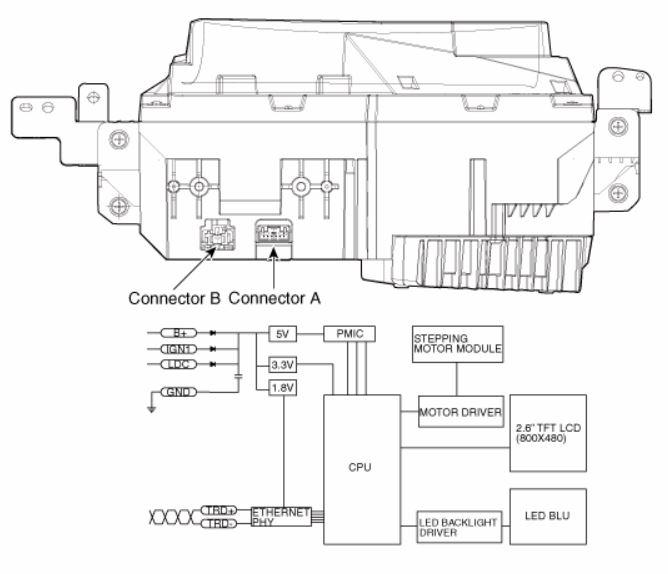

G15554911Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description
G14932231Courtesy of HYUNDAI MOTOR AMERICA
 1 Ground
2 -
3 -
4 LDC (B+) input
5 ION 1
6 Battery (*)
Connector A Pin Description
G14932232Courtesy of HYUNDAI MOTOR AMERICA
 1 Ethernet (+)
2 Ethernet (-)
