Components And Components Location: Components

G15548722Courtesy of HYUNDAI MOTOR AMERICA

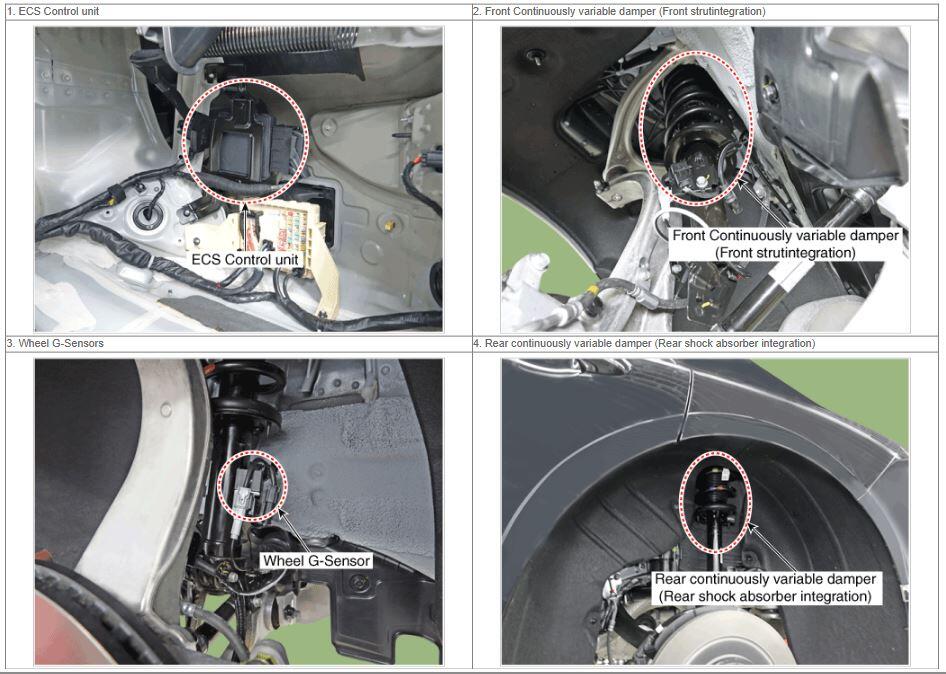

G00678271Courtesy of HYUNDAI MOTOR AMERICA

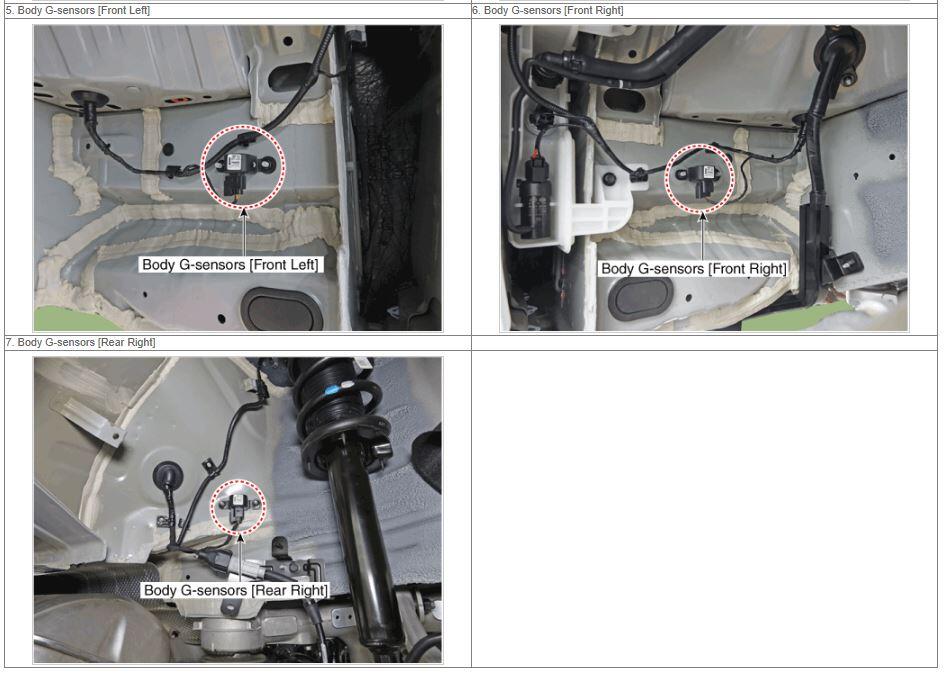

G00678272Courtesy of HYUNDAI MOTOR AMERICA
