Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.

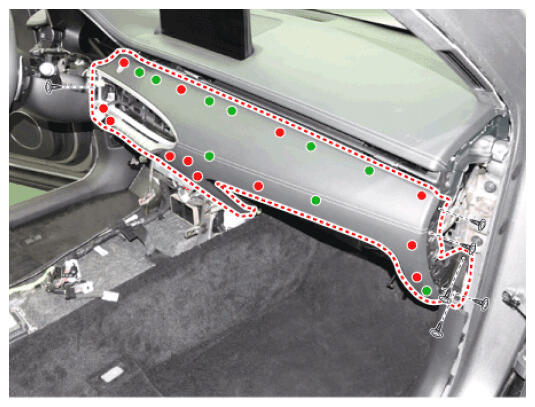

  2. Remove the crash pad garnish [RH].

    (Refer to Body - "CRASH PAD GARNISH ")

    G16856274Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16856275Courtesy of HYUNDAI MOTOR AMERICA

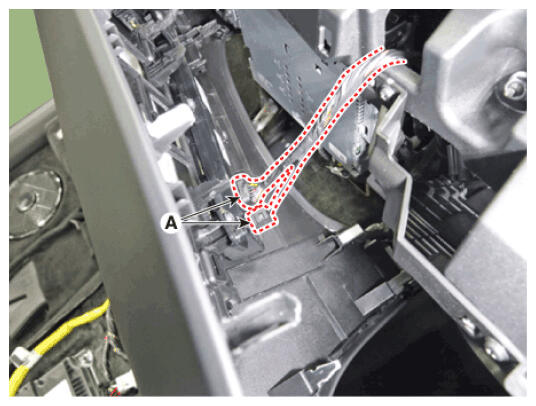

  3. Disconnect the AVN keyboard assembly connector (A).
    G16856276Courtesy of HYUNDAI MOTOR AMERICA

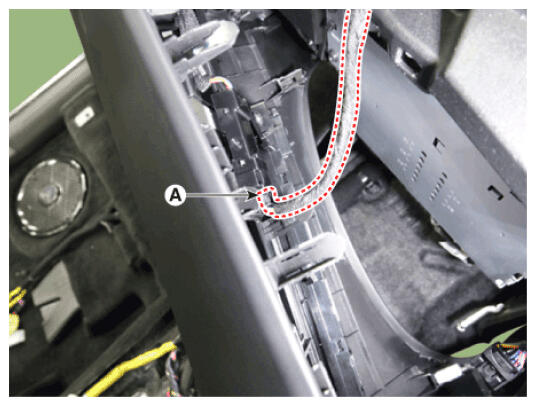

  4. Disconnect the mood lamp connector (A).
    G16856277Courtesy of HYUNDAI MOTOR AMERICA

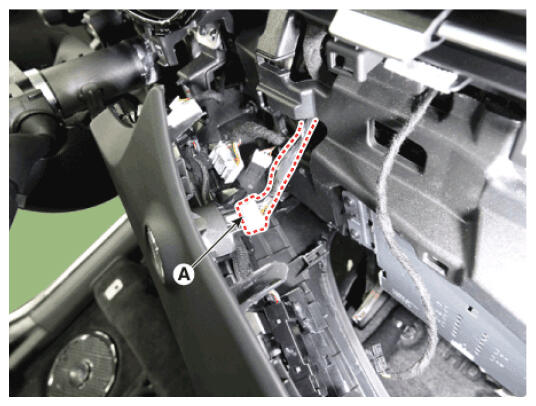

  5. Disconnect the Start/Stop button connector (A)
    G16856278Courtesy of HYUNDAI MOTOR AMERICA

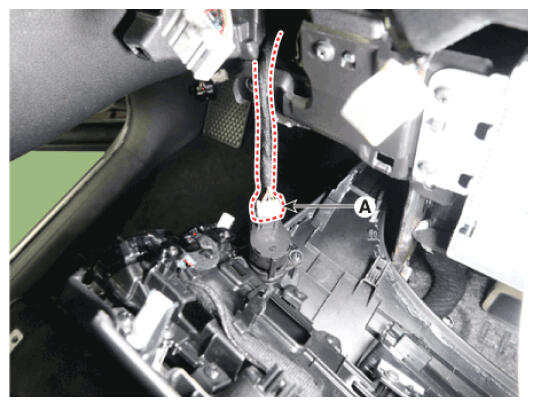

  6. Disconnect the Interior temperature sensor connector (A)
    G16856279Courtesy of HYUNDAI MOTOR AMERICA

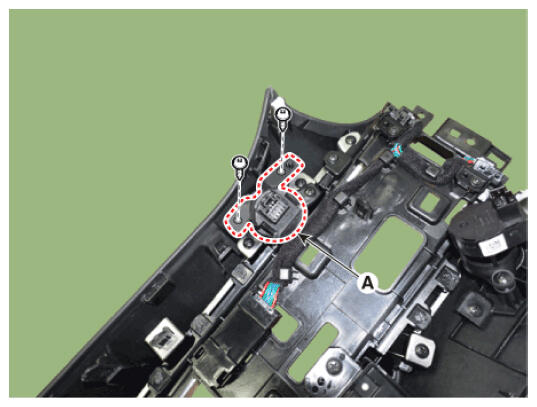

  7. Remove the Start/Stop button (A) after loosening mounting screws.
    G16856280Courtesy of HYUNDAI MOTOR AMERICA
