Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

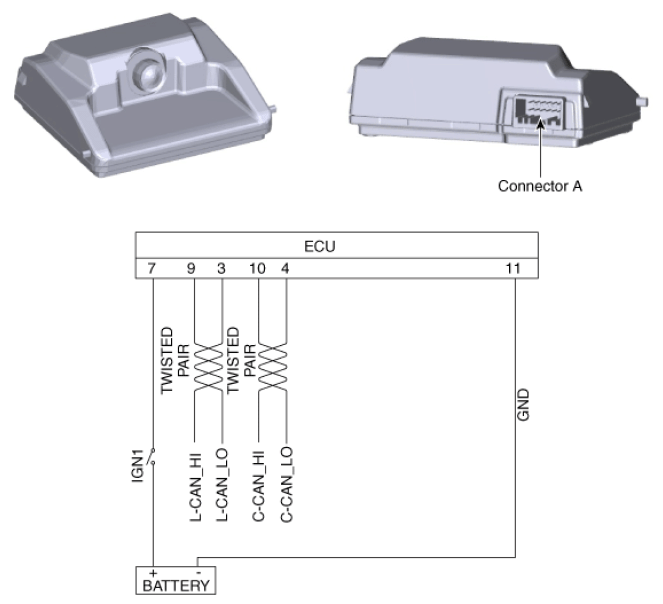

Connector A	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2	-
	3	L-CANFD1 (Low) or A-CANFD (Low)
	4	E-CANFD (Low)
	5	-
	6	-
	7	IGN1
	8	-
	9	L-CANFD1 (High) or A-CANFD (High)
	10	E-CANFD (High)
	11	Ground
	12	-
