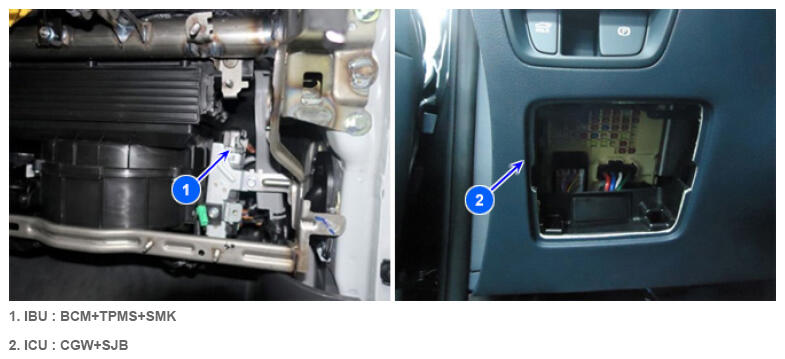

Integrated Body control Unit_Body Control Module
BCM* performs the time control function and alarm control output function according to the switch signal directly sensed by itself, and the switch signal transmitted by SJB* to the CAN network. And it is connected to ICU* to form B-CAN network and P-CAN network of the vehicle.
| Component | Name_ETM | Description | ETM |
|---|---|---|---|
| IBU | "IBU" | →[BCM+TPMS+SMK] Integrated Body control Unit | SD200-4 SD200-6 |
| BCM* | →Body Control Module | ||
| TPMS | →Tire Pressure Monitoring System | ||
| SMK | →Smart Key control module | ||
| ICU* | →"ICU JUNCTION BLOCK" | →[CGW+SJB] Integrated Central control Unit | |
| CGW | →"ICU JUNCTION BLOCK IPS CONTROL MODULE" | →Central GateWay | |
| SJB* | →"ICU JUNCTION BLOCK" | →Smart Junction Block | |
| ROA | "REAR OCCUPANT ALERT (ROA) SENSOR" | Rear Occupant Alert | SD952-1 |
