GV80 2.5T Advanced
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Cluster Module Diagnosis
>>
DTC B1006-55: PSB Present Error - Coding Code Error
>>
Troubleshooting
>>
Diagnostic Flowchart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

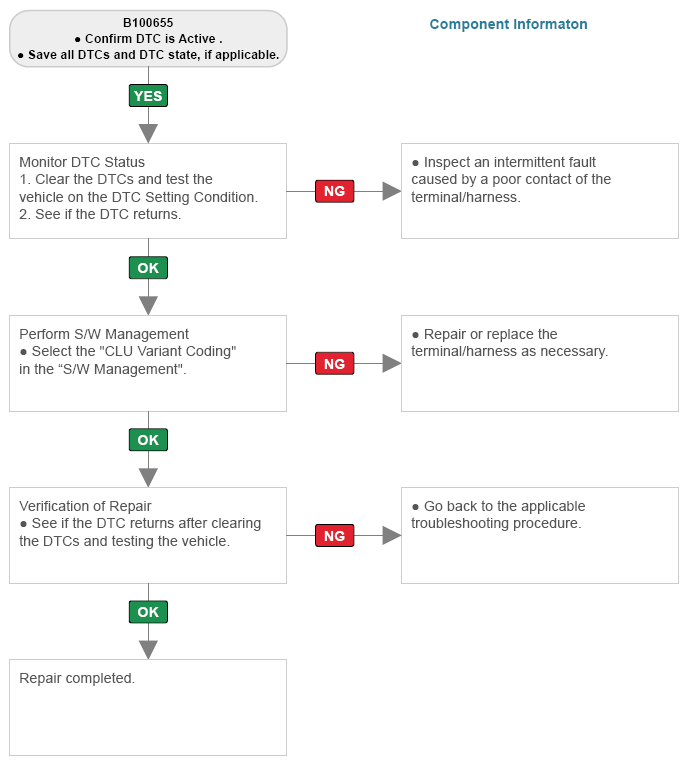

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
